Cluster Configuration Example 337
■ Add the device with the MAC address 0001-2034-a0e5 to the cluster blacklist,
that is, prevent the device from being managed and maintained by the cluster.
■ Save the current cluster topology as the base topology and save it in the flash
of the local management device in the cluster.
Network diagram

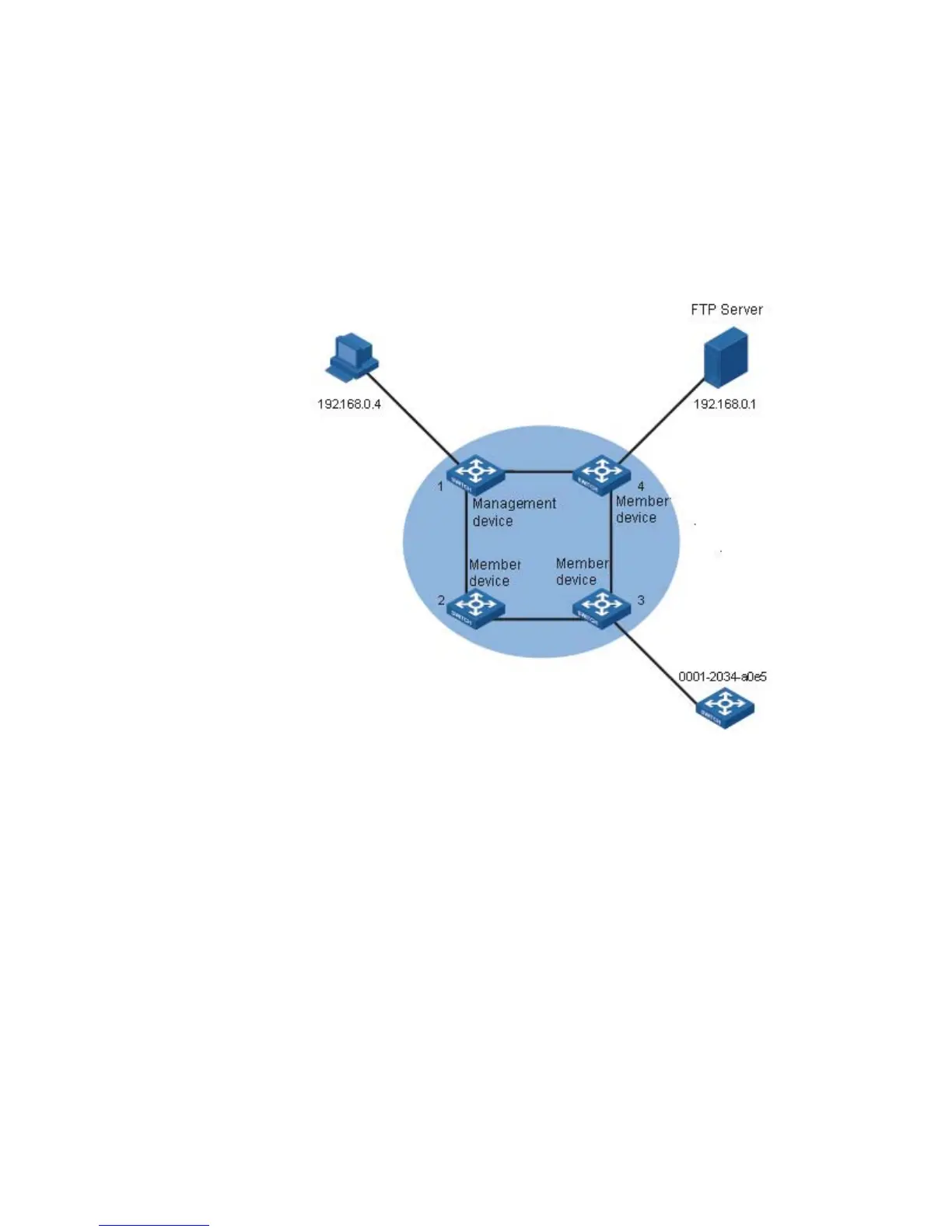

Figure 103 Network diagram for the enhanced cluster feature configuration
Configuration procedure
# Enter cluster view.
<aaa_0.3Com> system-view
[aaa_0.3Com] cluster
# Add the MAC address 0001-2034-a0e5 to the cluster blacklist.
[aaa_0.3Com-cluster] black-list add-mac 0001-2034-a0e5
# Backup the current topology.
[aaa_0.3Com-cluster] topology accept all save-to local-flash
