54 CHAPTER 2: LOGGING INTO AN ETHERNET SWITCH

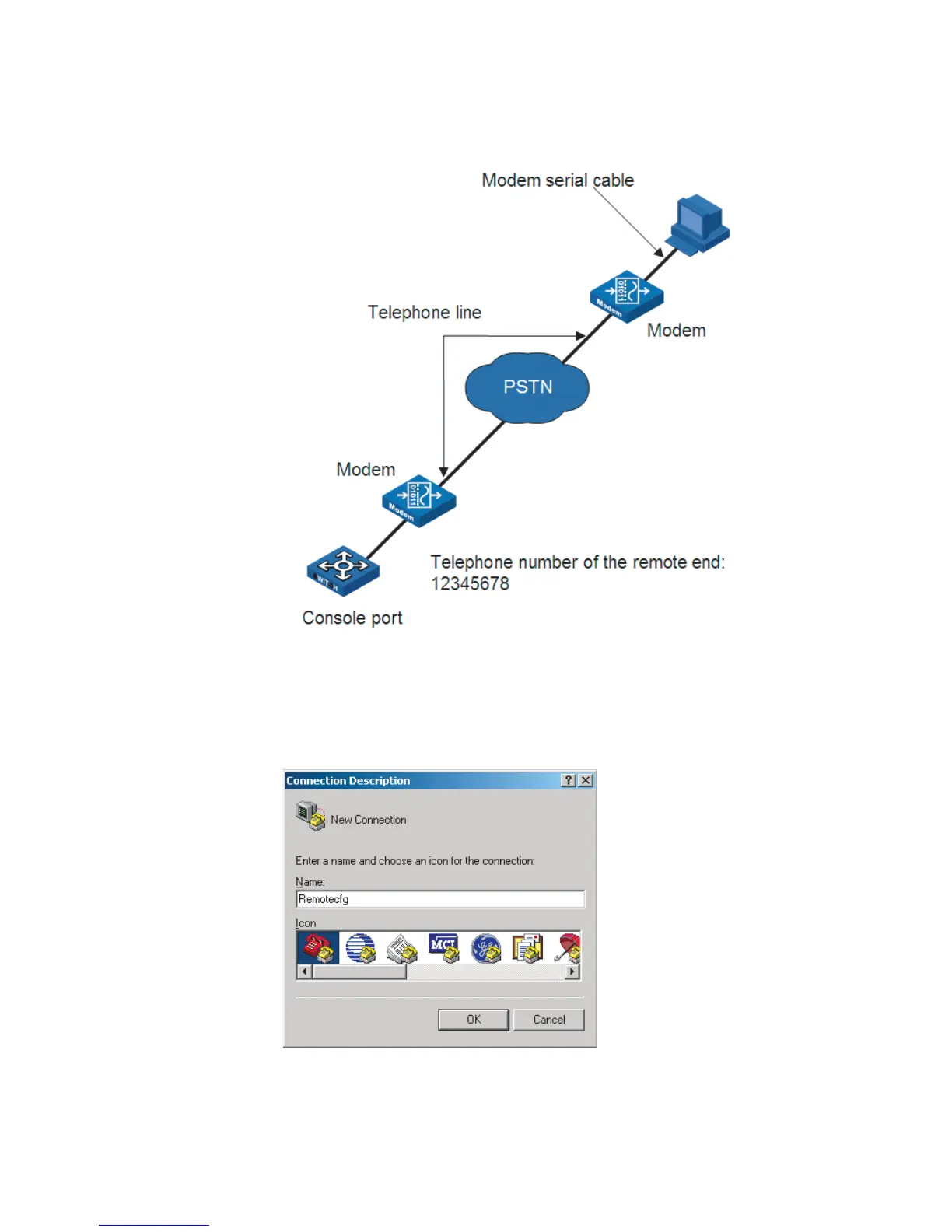

Figure 17 Establish the connection by using modems
4 Launch a terminal emulation utility on the PC and set the telephone number to call
the modem directly connected to the switch, as shown in
Figure 18 through
Figure 20. Note that you need to set the telephone number to that of the modem
directly connected to the switch.
Figure 18 Create a connection
