Configuring VLAN Management 85
Network diagram

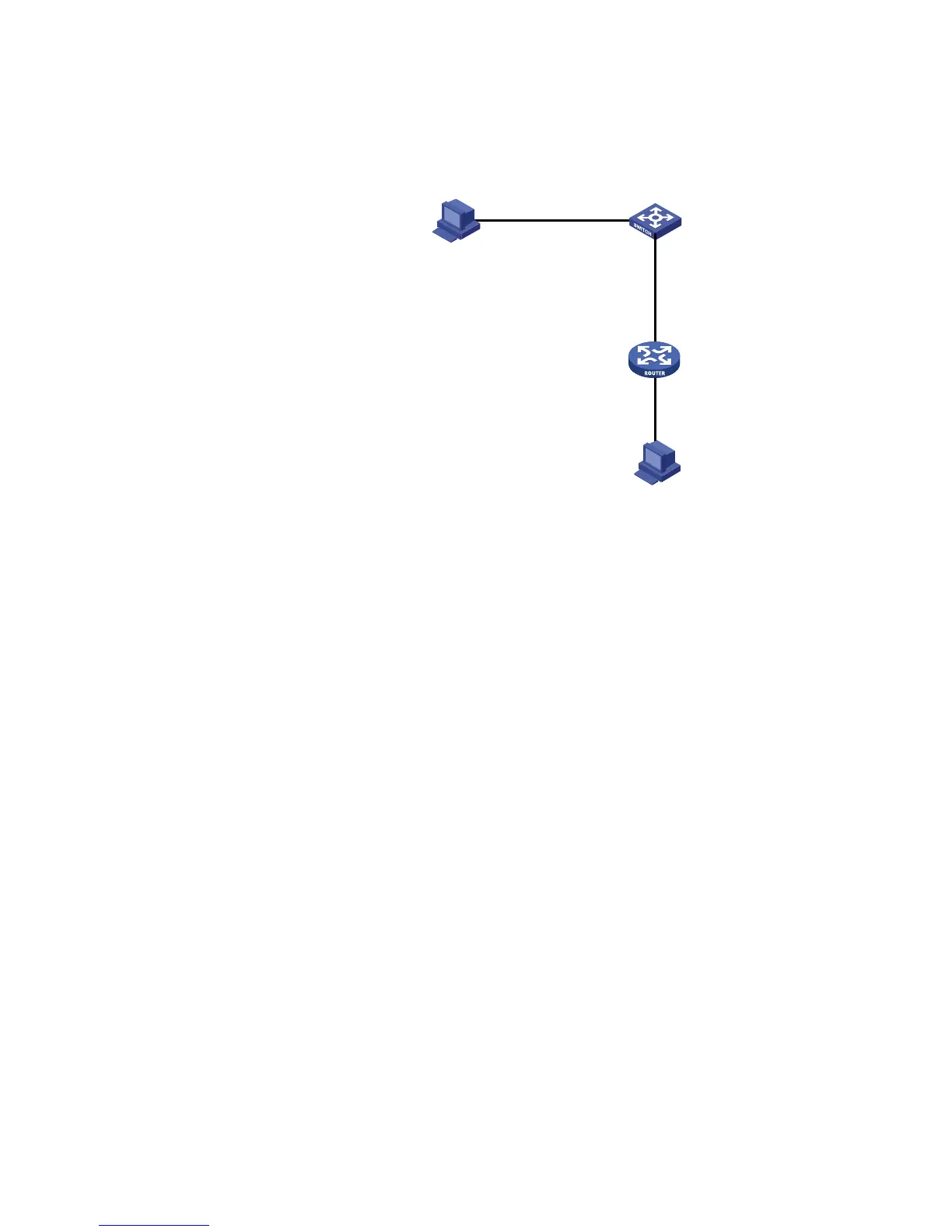

Figure 33 Network diagram for management VLAN configuration
Configuration procedure
n
Perform the following configurations after the current user logs in to Switch A
through the Console port.
# Enter system view.
<4210> system-view
# Create VLAN 10 and configure VLAN 10 as the management VLAN.
[4210] vlan 10
[4210-vlan10] quit
[4210] management-vlan 10
# Create the VLAN 10 interface and enter VLAN interface view.
[4210] interface vlan-interface 10
# Configure the IP address of VLAN 10 interface as 1.1.1.1/24.
[4210-Vlan-interface10] ip address 1.1.1.1 255.255.255.0
[4210-Vlan-interface10] quit
# Configure the default route.
[4210] ip route-static 0.0.0.0 0.0.0.0 1.1.1.2
RS-232 serial
interface
Console port
Console cable
Vlan- interface10
1. 1. 1. 1/ 24
Switch A
Telnet user
Ethernet1/1
1. 1. 1. 2/ 2 4
Router
Current
user
