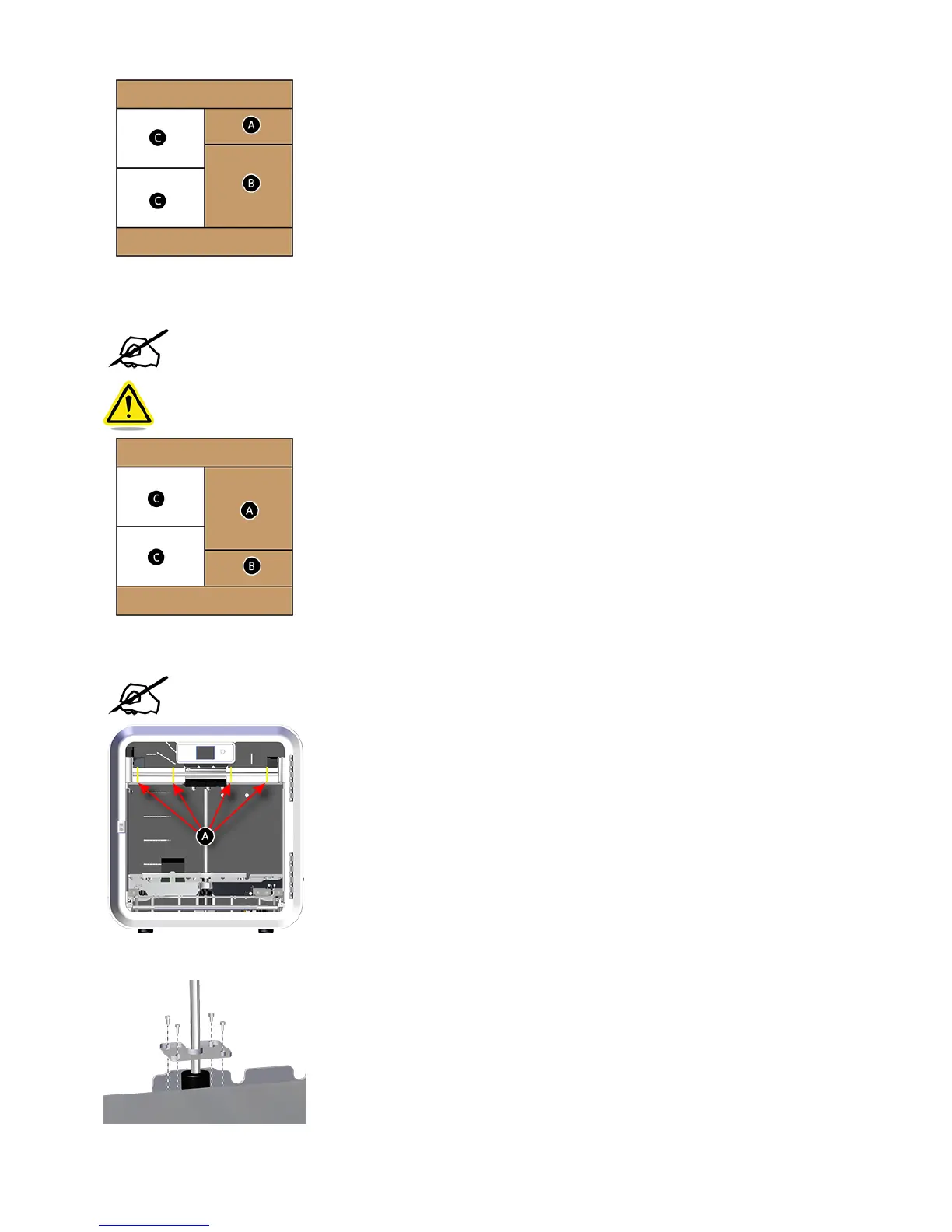

Unpack the bottom layer of the accessories tray.9.
NOTE: Depending on the printer configuration, the arrangement of the accessory
boxes may differ. Unpack the print pad (A), the jet wiper assembly (B), and material
cartridges (C). Your configuration may include 1, 2 or 3 cartridges. For configurations
with fewer than three cartridges included, empty boxes may be used as spacers.
CAUTION: The print pad is fragile. Exercise caution when handling the print pad.
Open the front door. Cut away the zip ties (A) and remove the foam tubing from the print jet area.10.
NOTE: For illustration purposes only, the door was removed from the image. Do not
attempt to remove the door from the printer.
Loosen and remove the four (4) 4mm screws securing the Z-Axis guard and remove the guard. Save the guard and screws for future repacking.11.
Using a 4mm hex head driver, attach the mounting posts to the jet wiper assembly with the supplied screws and washers.12.
