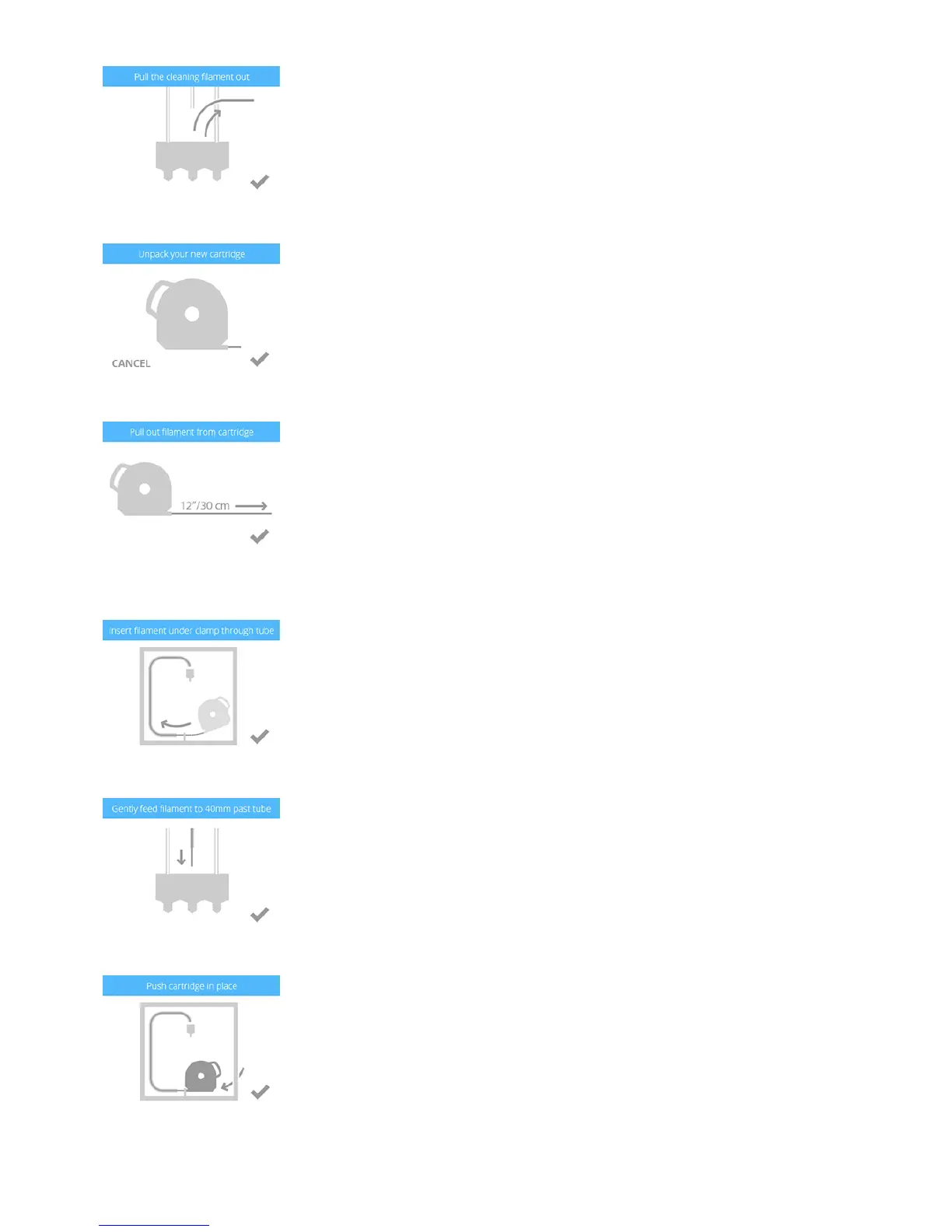

Open the packaging and remove the transit plug from the upper right side of the new cartridge. Select the checkmark to continue.8.
Pull out 12”/30 cm of material from the cartridge. Select the checkmark to continue.9.
Insert the filament under the cartridge clamp, through the eyelet and into the feed tube. Continue to feed the filament through the tube until it comes out10.
of the eyelet near the extruder block. Select the checkmark to continue.
Feed the filament until it protrudes 40 mm out of the eyelet near the extruder block. Select the checkmark to continue.11.
Push the cartridge into position in cartridge bay 2. Select the checkmark to continue.12.
Gently insert the filament into the extruder. Select the checkmark to continue.13.
