1.1.10. Note

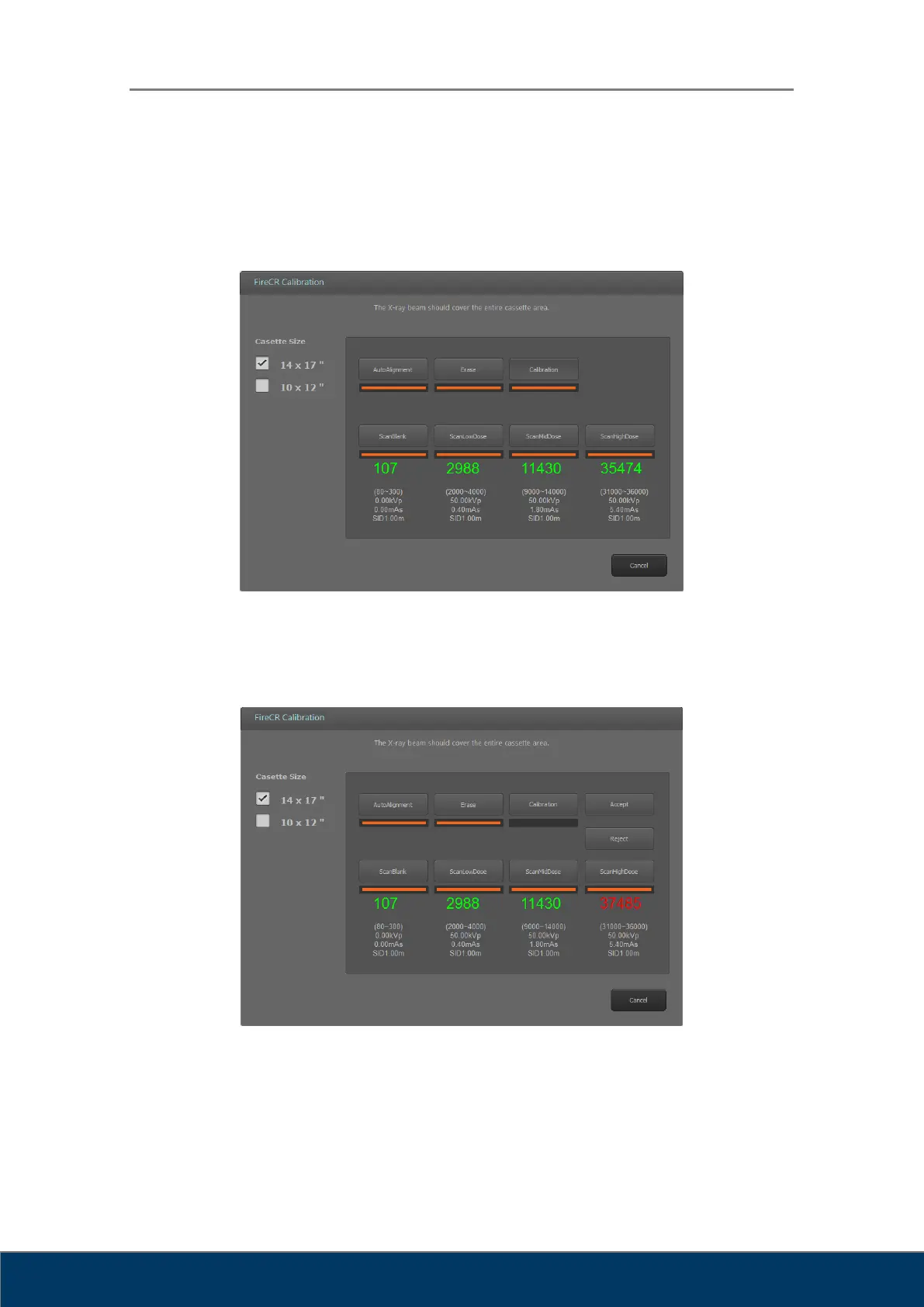

 When the mean intensity value for each step is within acceptable range, values are
shown in green.
Figure 2.23. Proper Calibration
 When the mean intensity value for each step is not within acceptable range, values are
shown in red.
Figure 2.24. Improper Calibration
 Start the calibration process from Auto Alignment or Erase for recalibration of the
reader.
