IP and VLAN segregation of IP Terminal Server and radio management

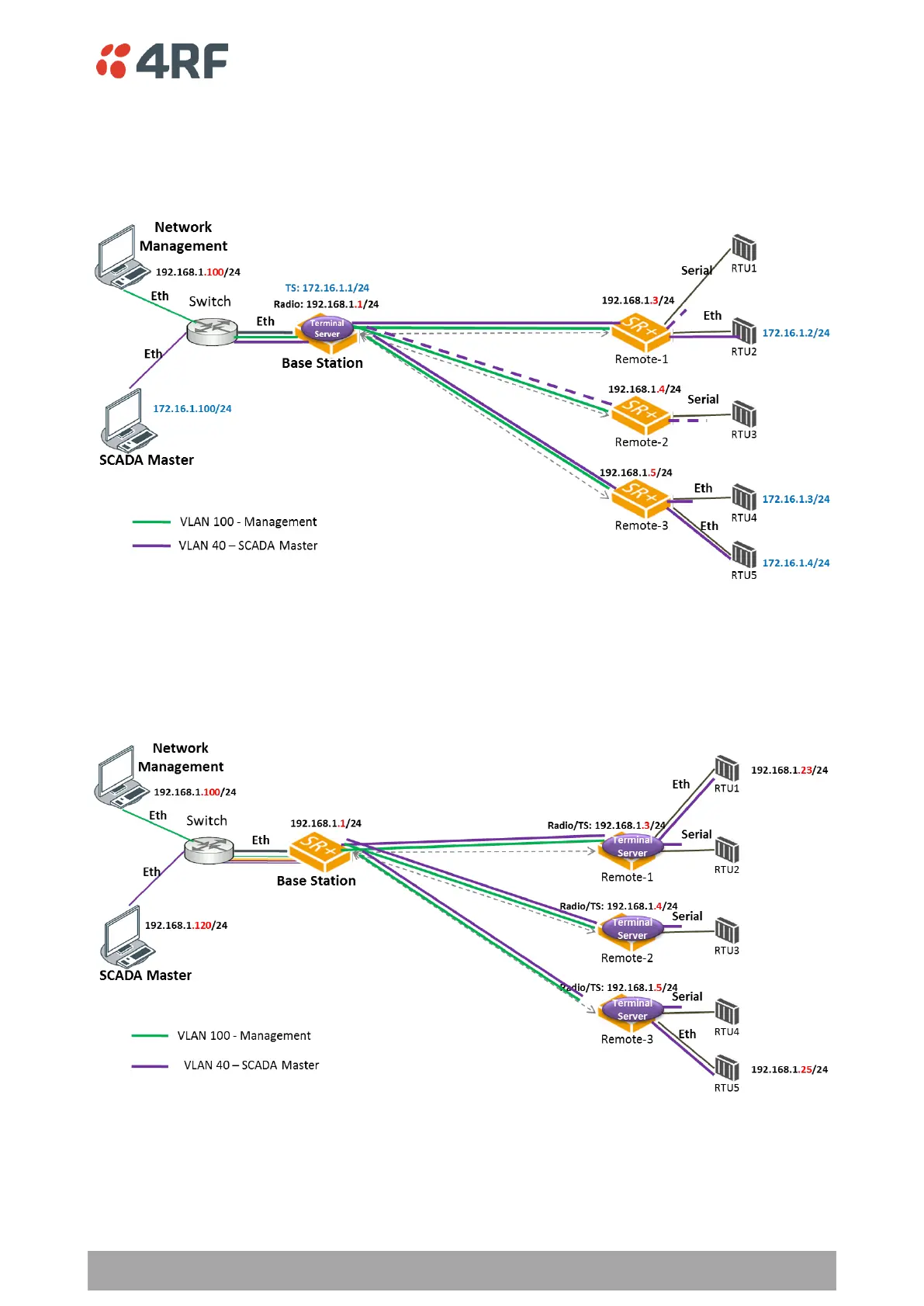

The following figure describes the IP and VLAN segregation of IP Terminal Server and radio management. It
is the same as the previous example except the IP Terminal Server is configured and used in the Base station
with different VLANs and IP addresses from the radio management VLAN and IP.
VLAN segregation of remote Terminal Server and radio management
The following figure describes VLAN segregation of the remote Terminal Server and radio management
where the Terminal Server in remote 1, 2 and 3 are configured with different VLANs from the radio
management VLAN and with the same IP address of the radios.
