VLAN segregation of IP-Terminal Server and radio management

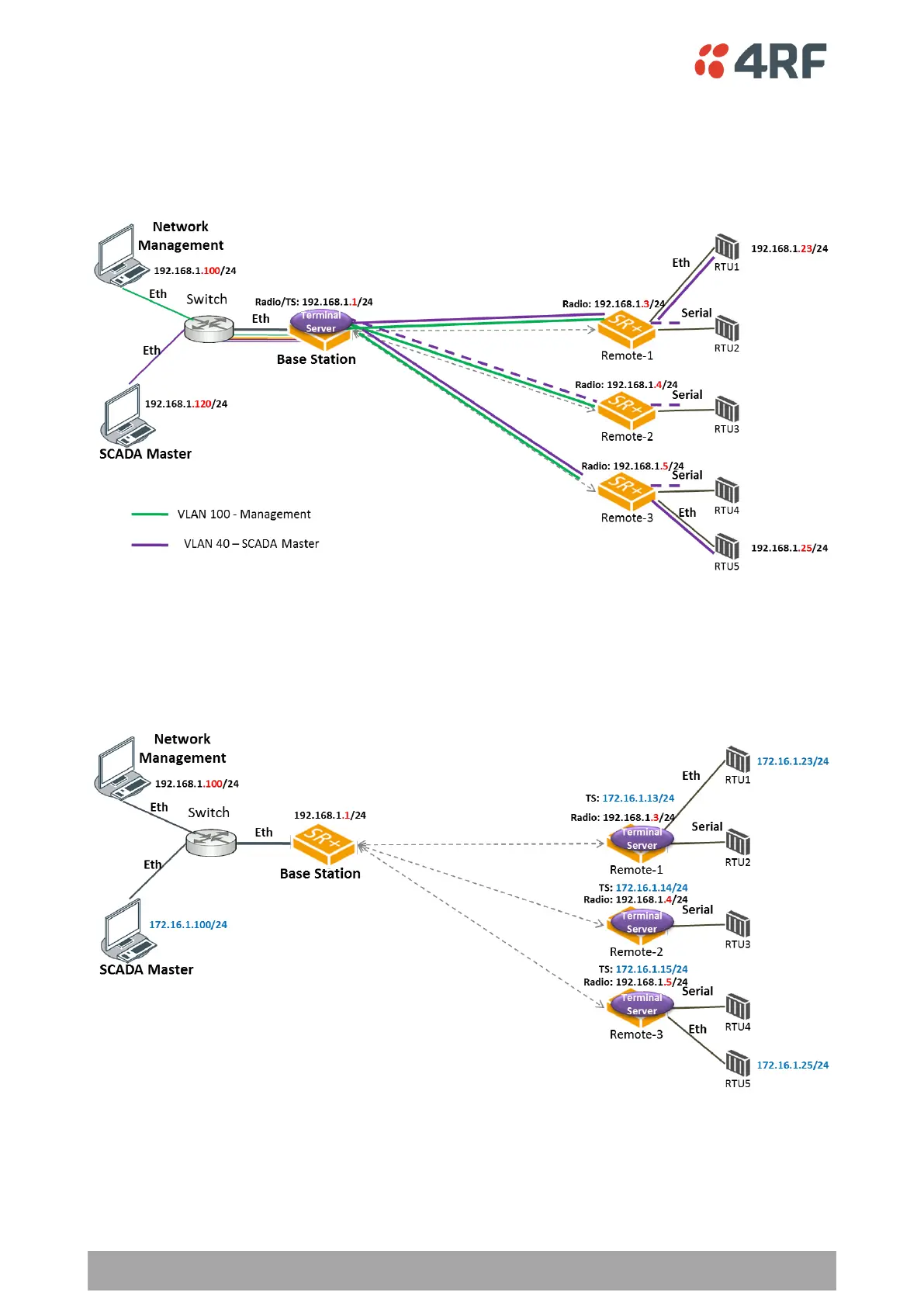

The following figure describes VLAN segregation of the IP Terminal Server and radio management where the
IP-Terminal Server in base station is configured with different VLANs from the radio management VLAN and
with the same IP address of the radios.
IP address segregation of remote Terminal Server and radio management
The following figure describes IP address segregation of the remote Terminal Server and radio management
where the Terminal Server in remote 1, 2 and 3 are configured with different IP addresses and subnet from
the radio management IP addresses and subnet.
