ABB A135-M65 - Weights of Individual Parts; Table 35 Weights of Assemblies

Operation Manual / 4 Product description / A130-M.. - A145-M..
8
Dismantling and fitting
Page 77 /
121
© Copyright 2017 ABB. All rights reserved.
HZTL4031_EN
Revision E
January 2017
8.2 Weights of individual parts
The specified weights of the individual parts or assemblies are rounded-up standard values.

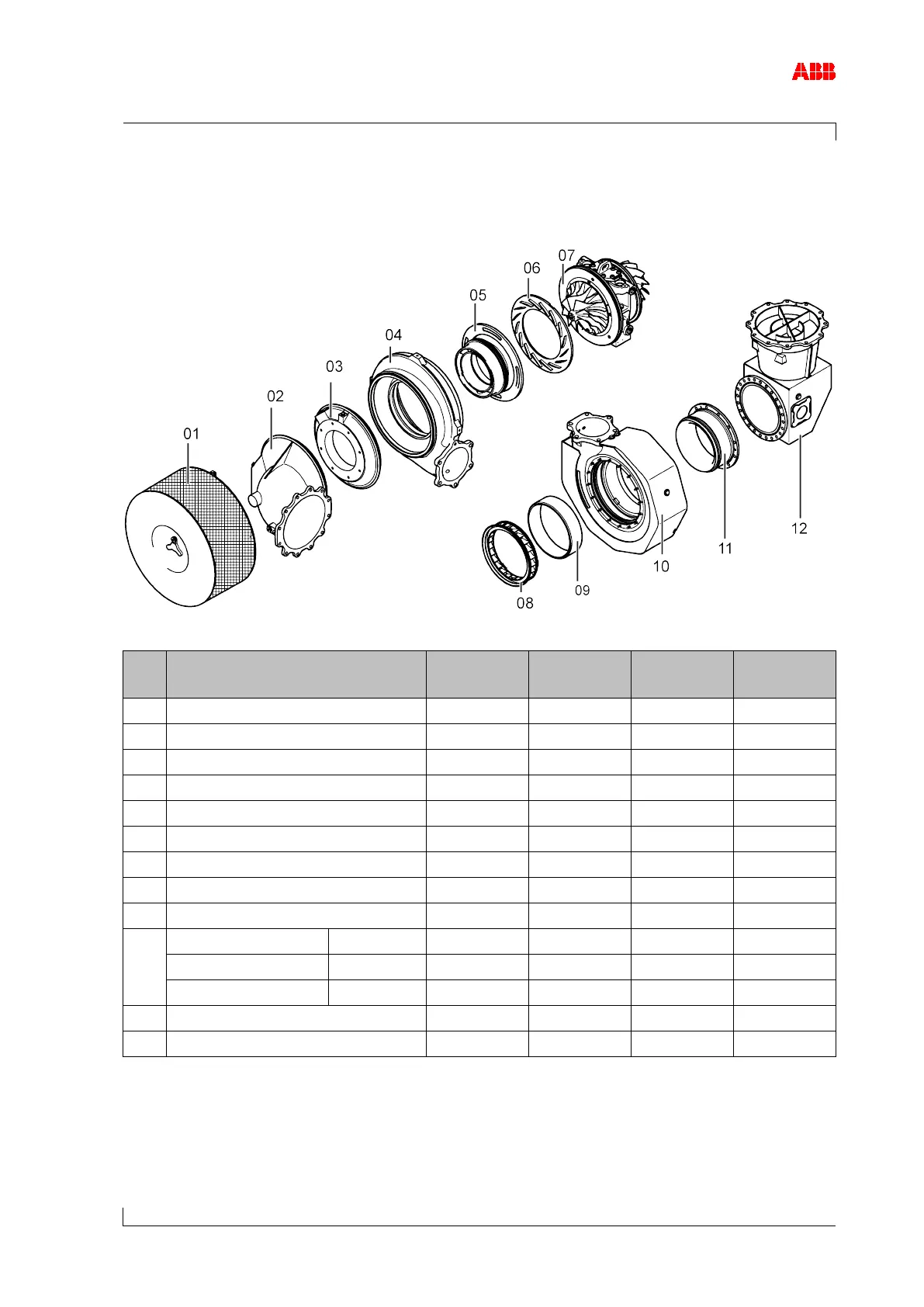

Figure 28: Weights of assemblies
Designation
A130
[kg]
A135
[kg]
A140
[kg]
A145
[kg]
01 Filter silencer 19 30 40 65
02 Radial air suction branch 6 8 13 21
03 Axial air suction branch 4 5 6 9
04 Compressor casing 24 40 60 95
05 Wall insert 6 8 15 24
06 Diffuser 3 4 7 11
07 Cartridge group 40 60 110 180
08 Nozzle ring 2 2 4 6
09 Burst ring 2 3 5 12
10 Turbine casing * 1 inlet 50 75 135 210
Turbine casing * 2 inlets 45 65 125 190
Turbine casing * 3 inlets - - - - 125 190
11 Gas outlet flange 7 13 20 23
12 Gas outlet casing 30 35 65 120
Table 35: Weights of assemblies
* including burst protection
