Loads that are not attached according to regulations can cause injury to per-
sonnel or fatal accidents.
Only fasten the turbocharger, assemblies or individual parts on properly
functional lifting gear with sufficient load limit.
Pay attention to the correct attachment of loads on the crane hook.
People must not stand under suspended loads.
Wear safety gloves to protect against mechanical hazards.
Wear safety helmet.
Defined loading point on a component or an assembly (blind hole thread, eyelet, lug).
Devices that are fitted on the turbocharger in order to obtain a suspension point. Assembly
devices are specially constructed and designed for the defined use; they are not commer-
cially available products. Use assembly devices only for the described applications.
Equipment for the lifting and transporting of loads (ropes, chain block, crane). Lifting gear
is not supplied by ABB.

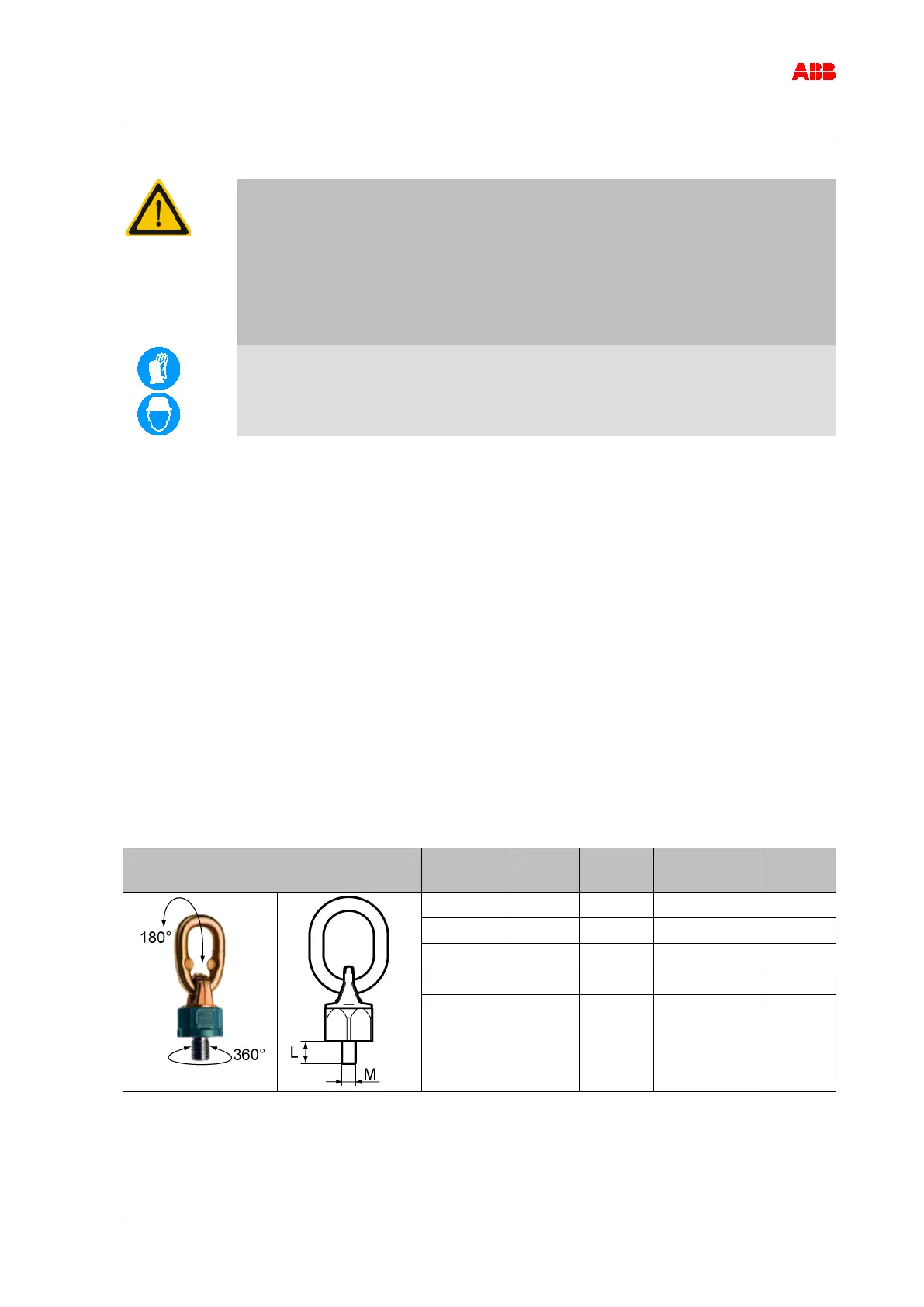

Swivel lifting eyes to be used
Two swivel lifting eyes are required for the safe lifting of loads, which are not supplied by
ABB Turbo Systems.
A130 M10 17 mm 100 kg 2
A135 M10 17 mm 150 kg 2
A145 M12 21 mm 300 kg 2
Table 33: Swivel lifting eyes
