Operation Manual / 4 Product description / A130-M.. - A145-M..
1
Introduction
Page 9 /
121
© Copyright 2017 ABB. All rights reserved.
HZTL4031_EN
Revision E
January 2017
1.6 Locations of the rating plates

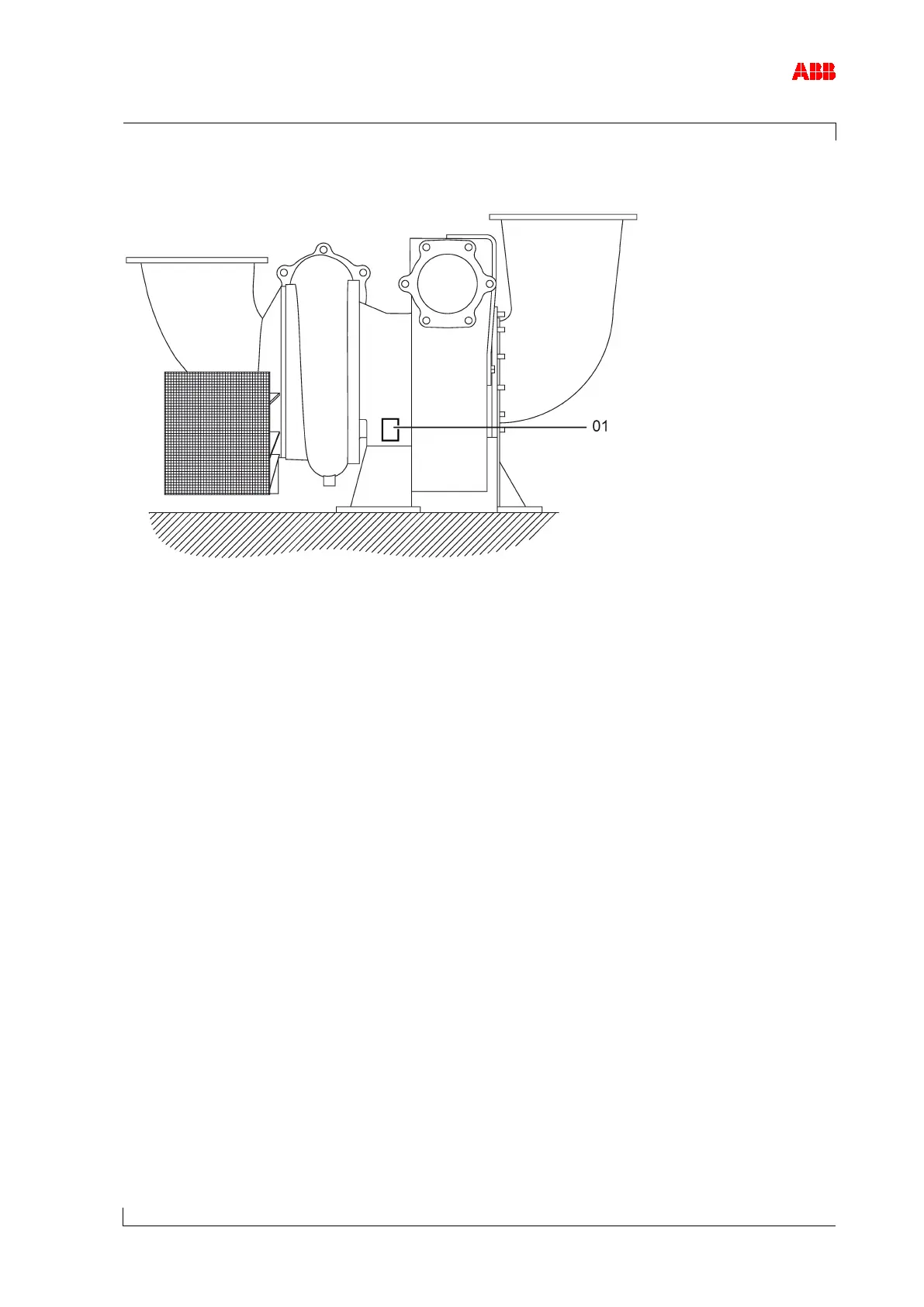

Figure 4: Locations of the rating plates
One rating plate (01) each is attached on the left and the right side of the turbocharger bearing
casing.
