9.5 Cover plate drawing
The cover plate is not included in the ABB Turbo Systems scope of delivery and must be
manufactured by the operating company according to the following drawing.
Material: General structural steel, in compliance with DIN EN 10025-2.

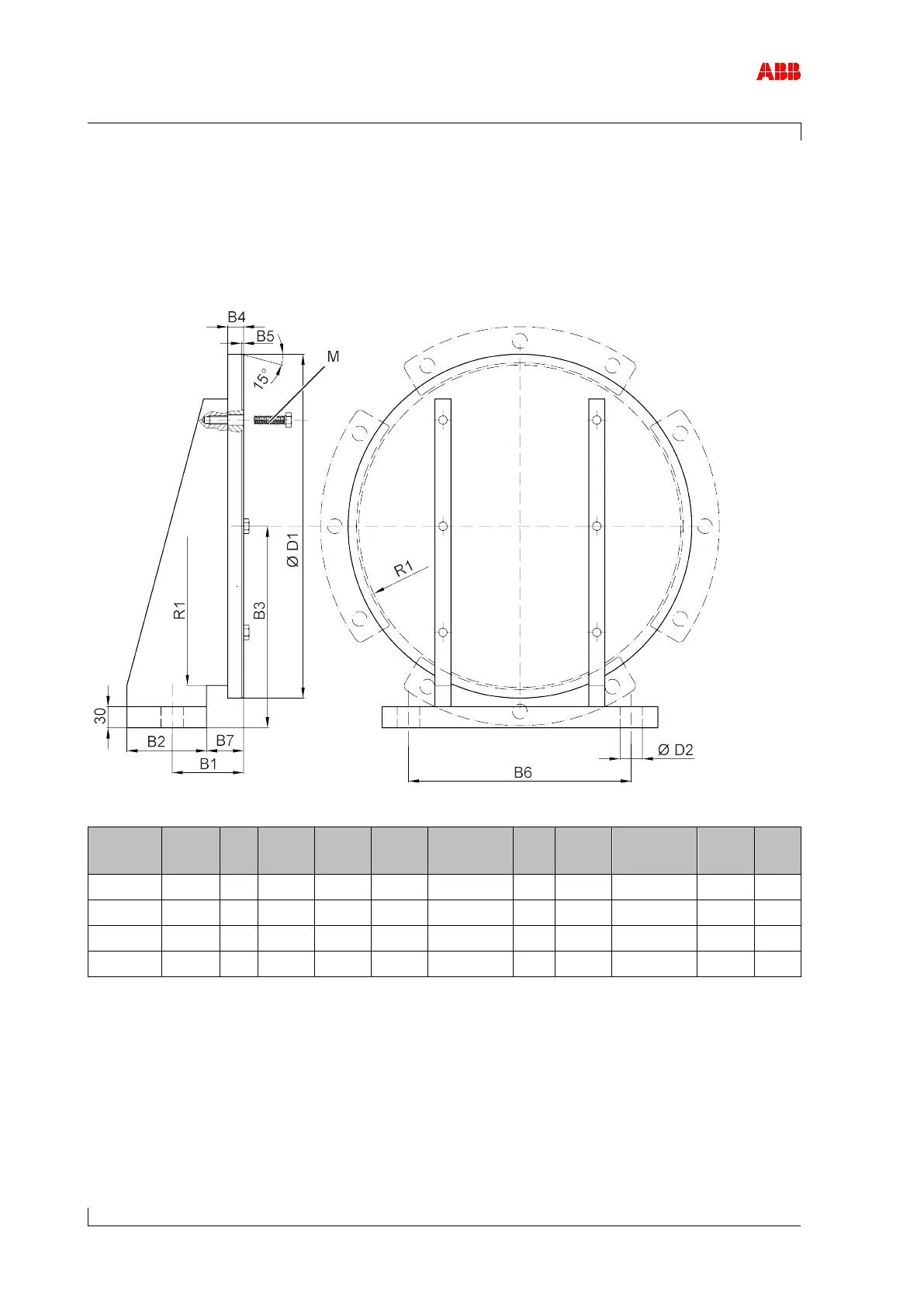

Figure 59: Cover plate drawing
Product
B1
± 0.5
B2
B3
B4
± 0.2
B5
B6
B7
ØD1
± 0.2
ØD2
R1
M
A130 65.7 60 130 11.7 1.4 150 35.7 227.7 17 ≤ 105 M8
A135 79.6 80 155 14.2 1.6 180 39.6 271.7 21 ≤ 125 M8
A140 98.2 102 190 17.2 2.0 220 48.2 332.5 25 ≤ 153 M10
A145 116.8 120 226 20.5 2.4 260 56.8 395.9 31 ≤ 182 M10
Table 48: Cover plate dimensions [mm]
