8.10 Installing the cartridge group on the service support

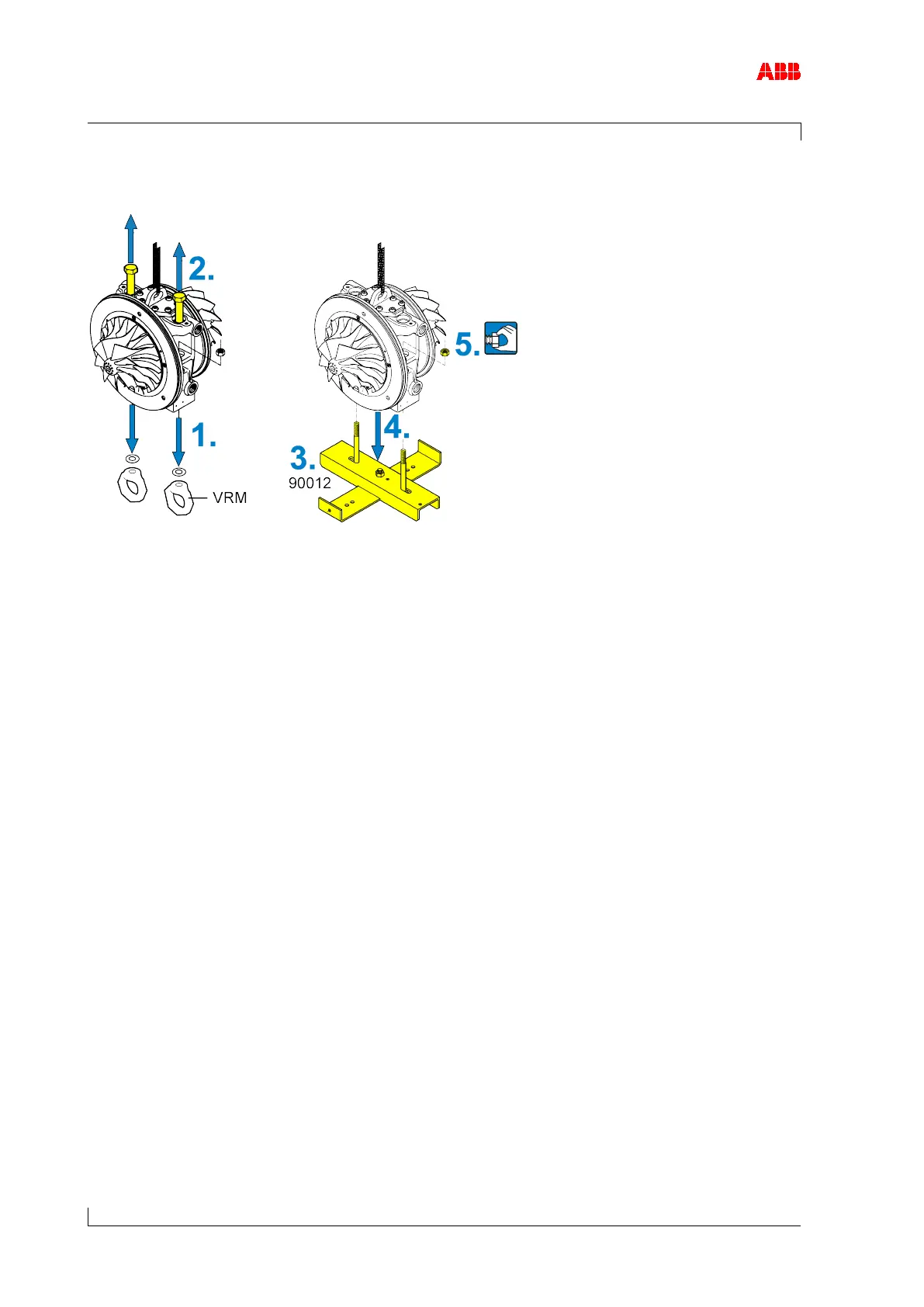

Figure 42: Installing the cartridge group on the service support
1. Remove ring nuts (VRM).
2. Remove service support screws.
3. Fit service support (90012) according to the illustration.
4. Insert the cartridge group.
5. Fit the nuts.
