Operation Manual / 2 Safety / A130 - A155
Page 7 /
© Copyright 2017 ABB. All rights reserved.
1.7 Warning plates on the turbocharger
Warning plates are attached to the turbocharger, which must be observed. The warning plates
must always be present in the intended locations and must be legible.

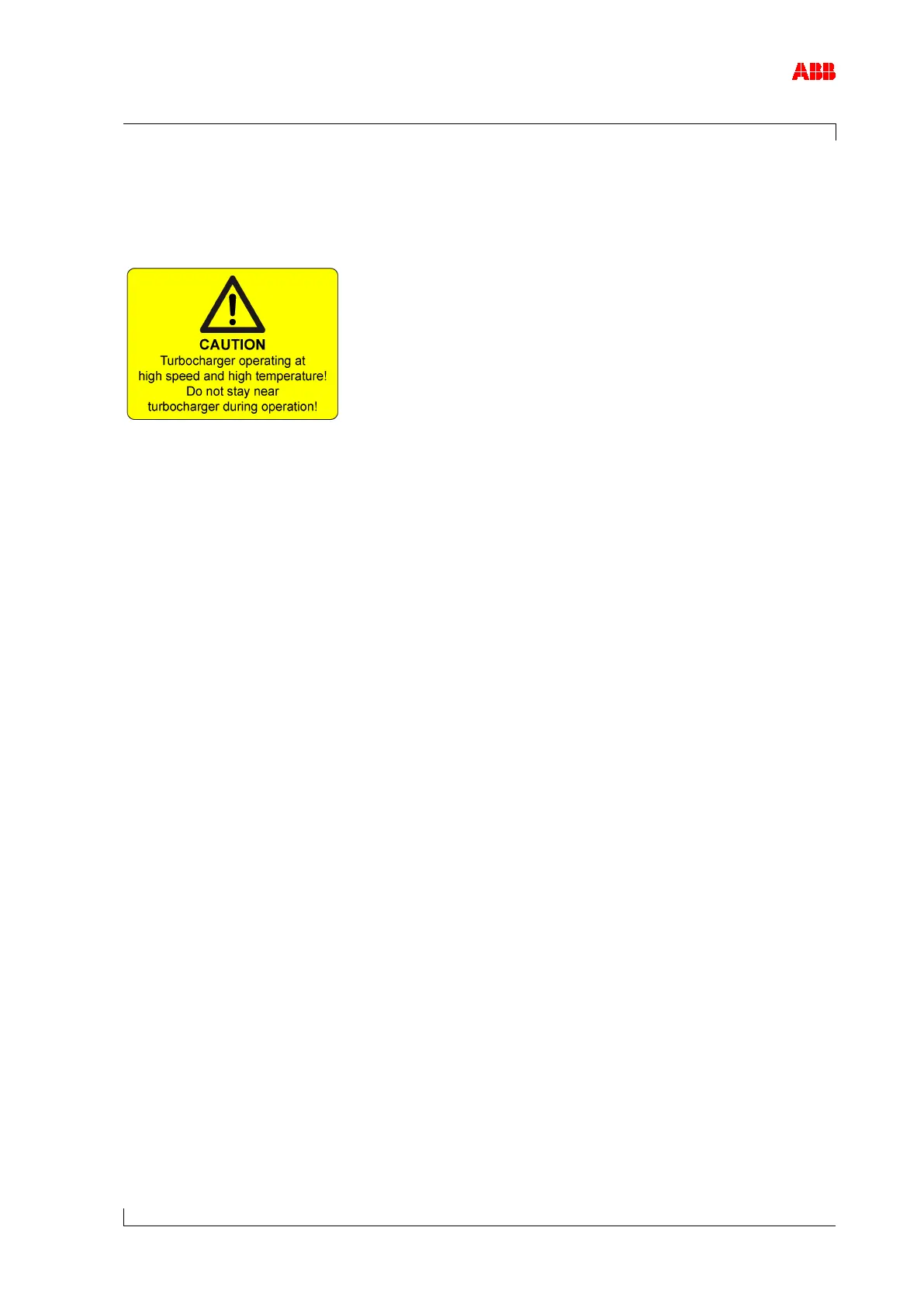

Figure 1: Warning plate
If warning plates are not present in the intended locations or are not legible, they must be re-
placed with new warning plates. The necessary information can be found in the Operation
Manual, Chapter 4 Product description.
Turbochargers supplied to the enginebuilder without insulation must be equipped later with
warning plates on the insulation. This is the responsibility of the enginebuilder.
