2 Removing and Installing
2.1 Turbocharger weight and transportation
Lifting gear with a sufficient load limit must be used for removing and installing the turbo-
charger. The following weight specification applies to the heaviest variant possible. Depending
on the specification, the weight specified on the rating plate may be lower than the standard
value specified here.
Product
Weights [kg]
A130-M 200
A135-M 280
A140-M 470
A145-M 770
Table 2: Weights of turbochargers A130-M.. – A145-M..

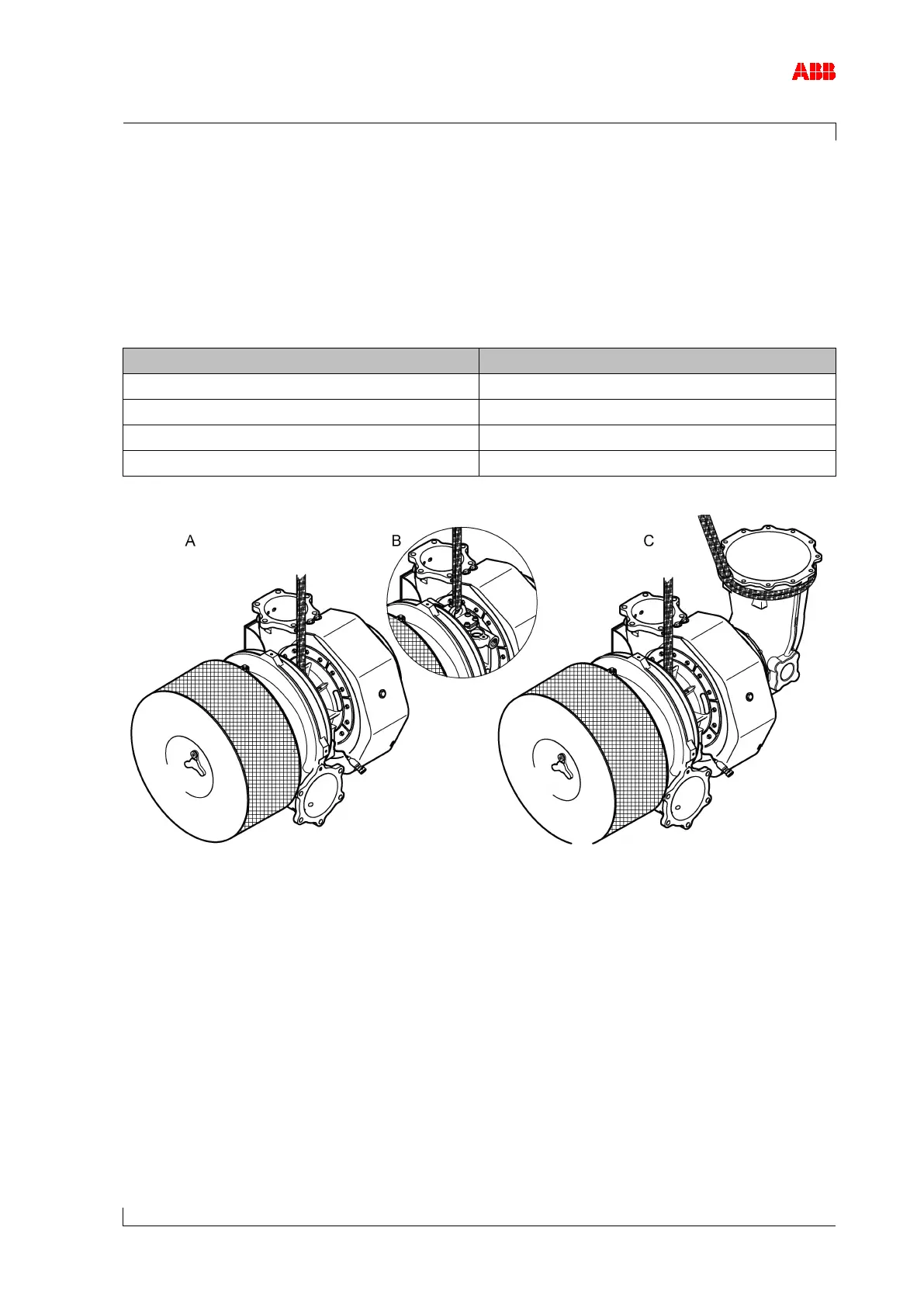

Figure 5: Suspension of complete turbocharger unit
A Turbocharger with oil-cooled bearing casing
B Turbocharger with water-cooled bearing casing
C Complete turbocharger unit with gas outlet casing
