Installing the compressor casing

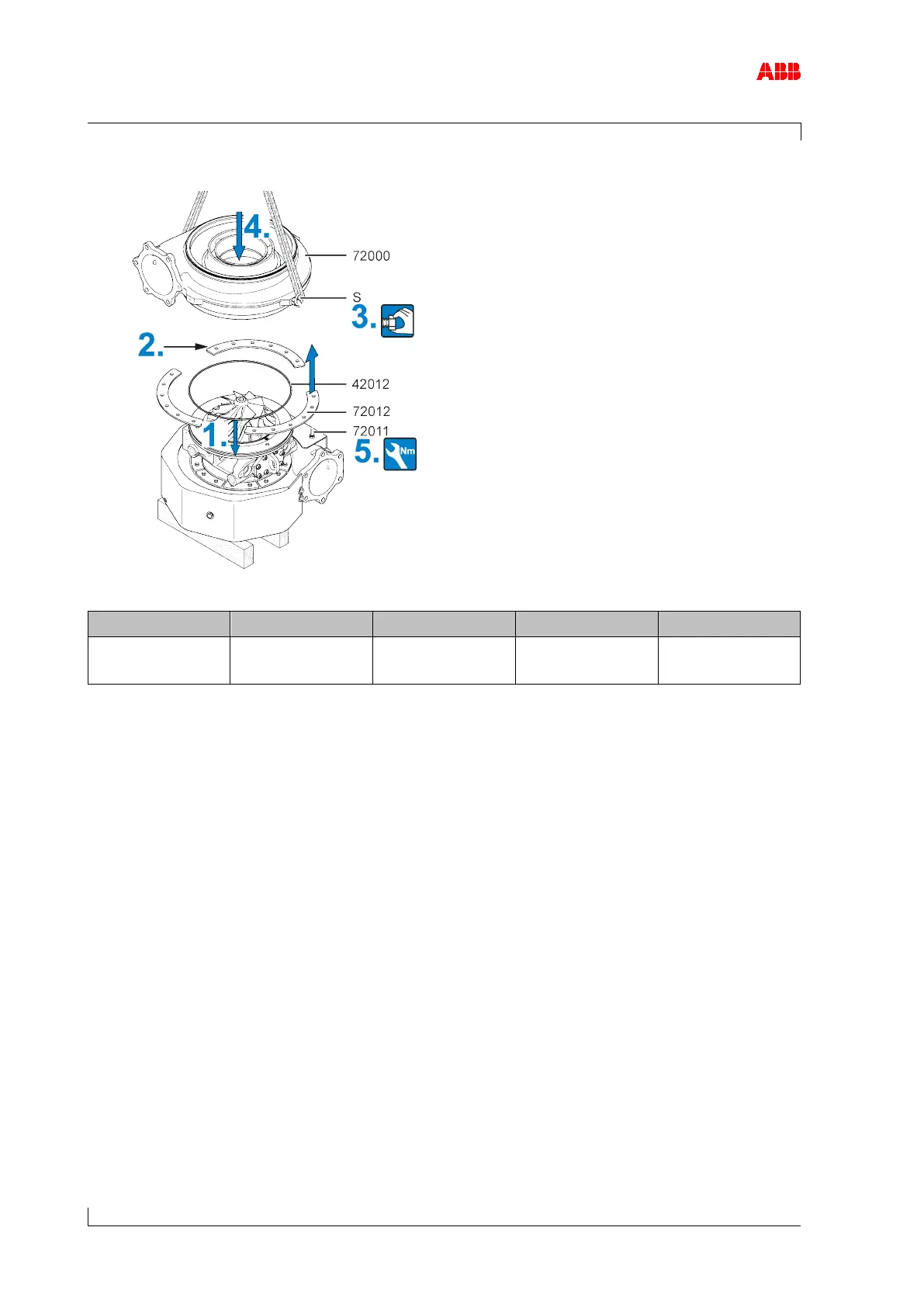

Figure 49: Installing the compressor casing
Part number
A130
A135
A140
A145
72011 M8
35 Nm
M10
70 Nm
M12
105 Nm
M14
170 Nm
Table 42: Tightening torque (72011)
1. Fit a new O-ring (42012).
2. Thoroughly clean the fastening strips (72012) before assembly.
3. Attach swivel lifting eyes (S) to compressor casing (72000). Secure lifting gear to the swiv-
el lifting eyes.
4. Install the compressor casing (72000).
5. Install the fastening strips (72012) with screws (72011). Observe the tightening torque. If
these screws do not have a Verbus Ripp® integrated, Verbus Ripp® washers (72010)
must also be fitted.
