8.17 Installing air inlets

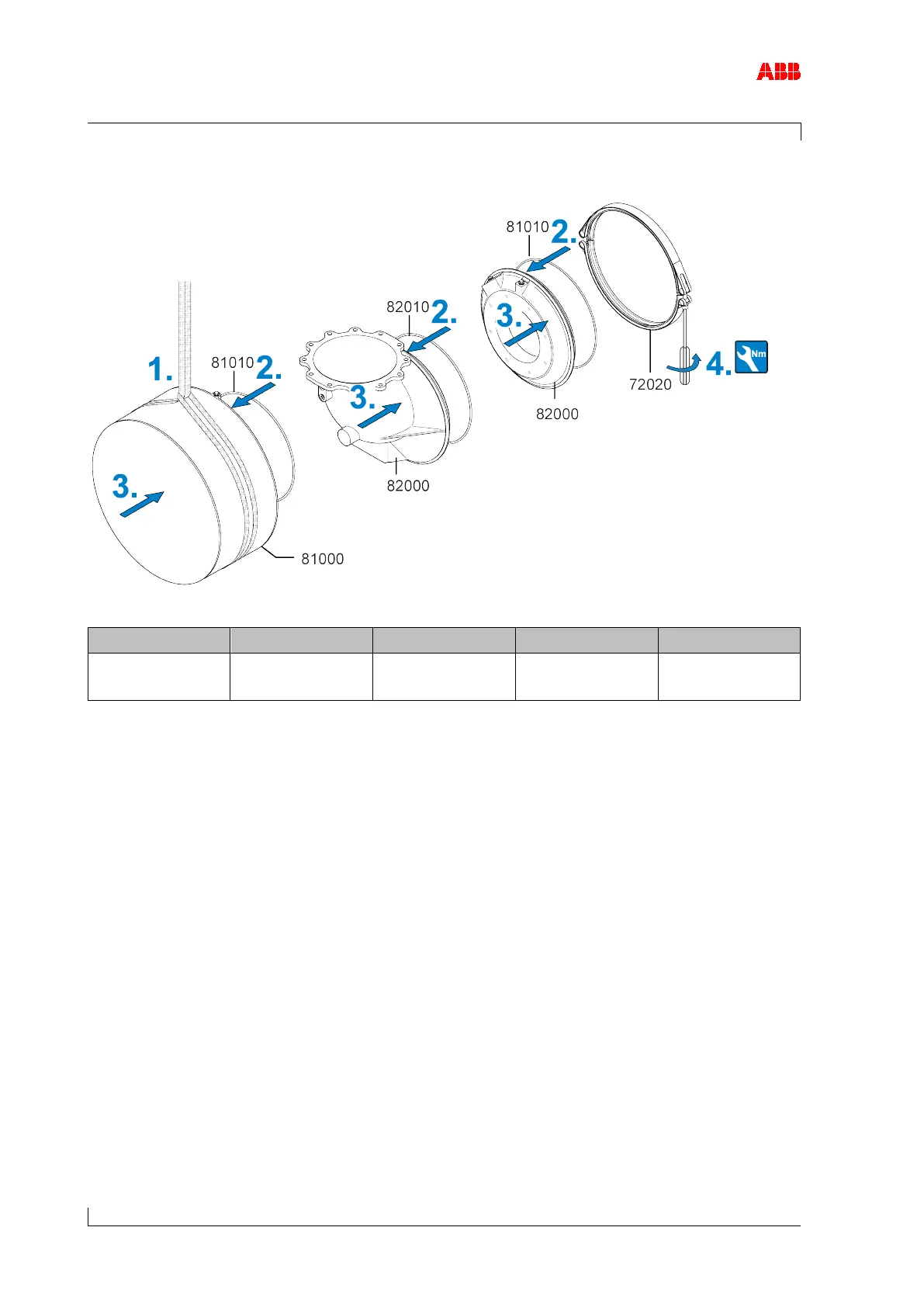

Figure 51: Installing the air inlets
Part number
A130
A135
A140
A145
72020 M12
60 Nm
M12
60 Nm
M12
60 Nm
M12
60 Nm
Table 44: Tightening torque (72020)
1. Secure lifting gear to filter silencer (81000).
2. Fit a new O-ring (81010) to the filter silencer (81000) or a new O-ring (82010) to the air
suction branch (82000).
3. Fit the filter silencer (81000) or air suction branch (82000) with the V-clamp (72020).
4. Observe the tightening torque.
