8.19 Installing the gas outlet casing

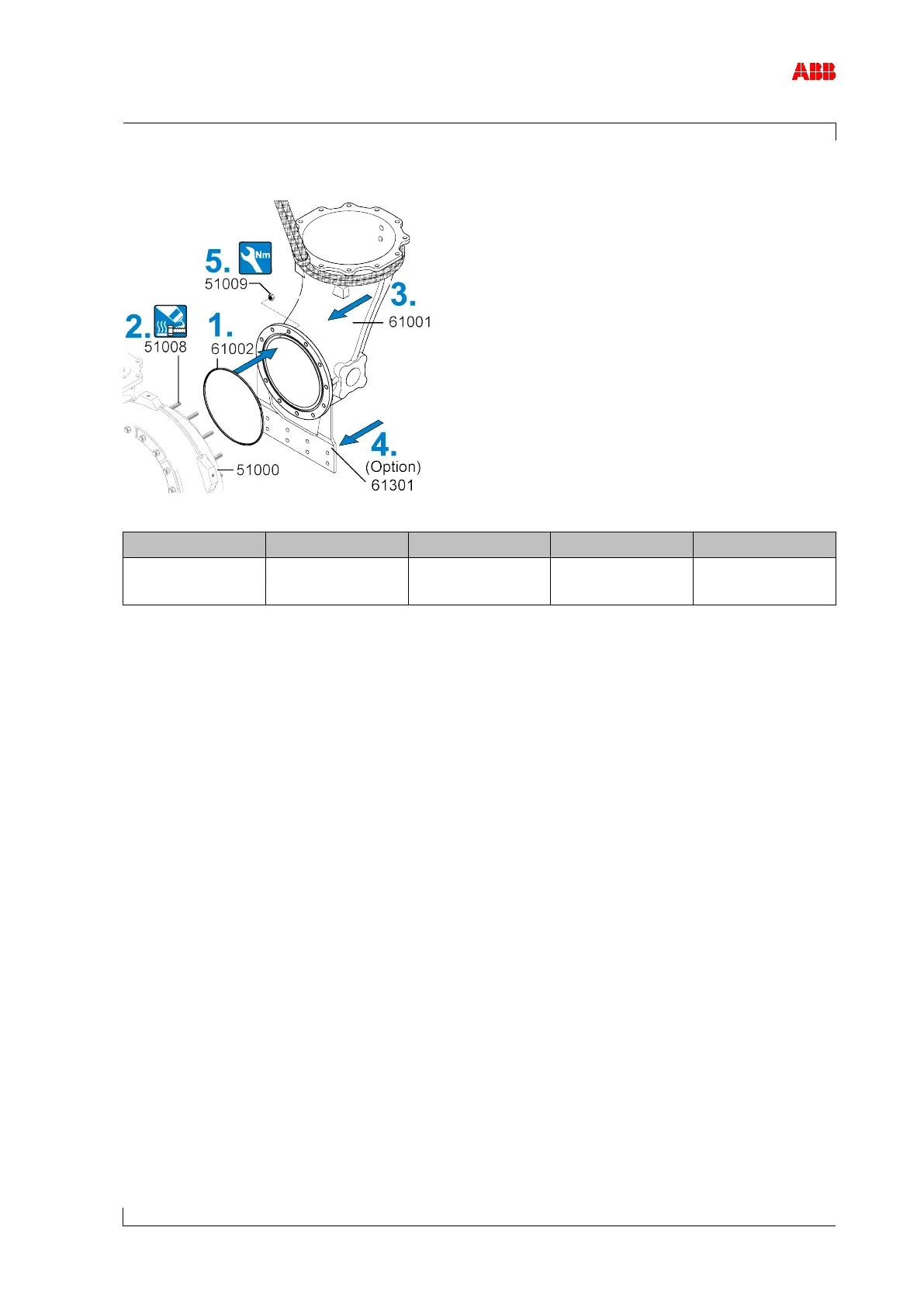

Figure 54: Installing the gas outlet casing
Part number
A130
A135
A140
A145
51009 M8
20 Nm
M10
40 Nm
M12
65 Nm
M12
65 Nm
Table 45: Tightening torque (51009)
1. Insert a new gasket (61002) into the gas outlet casing (61001).
2. Coat the threads of the studs (51008) with high-temperature grease.
3. Attach the lifting gear to the gas outlet casing (61001) and position the gas outlet casing in
the correct position on the turbine casing (51000).
4. If present: Fit the support (61301).
5. Fit the hexagon nuts (51009). Observe the tightening torque.
