Fitting the insulation of the turbine casing

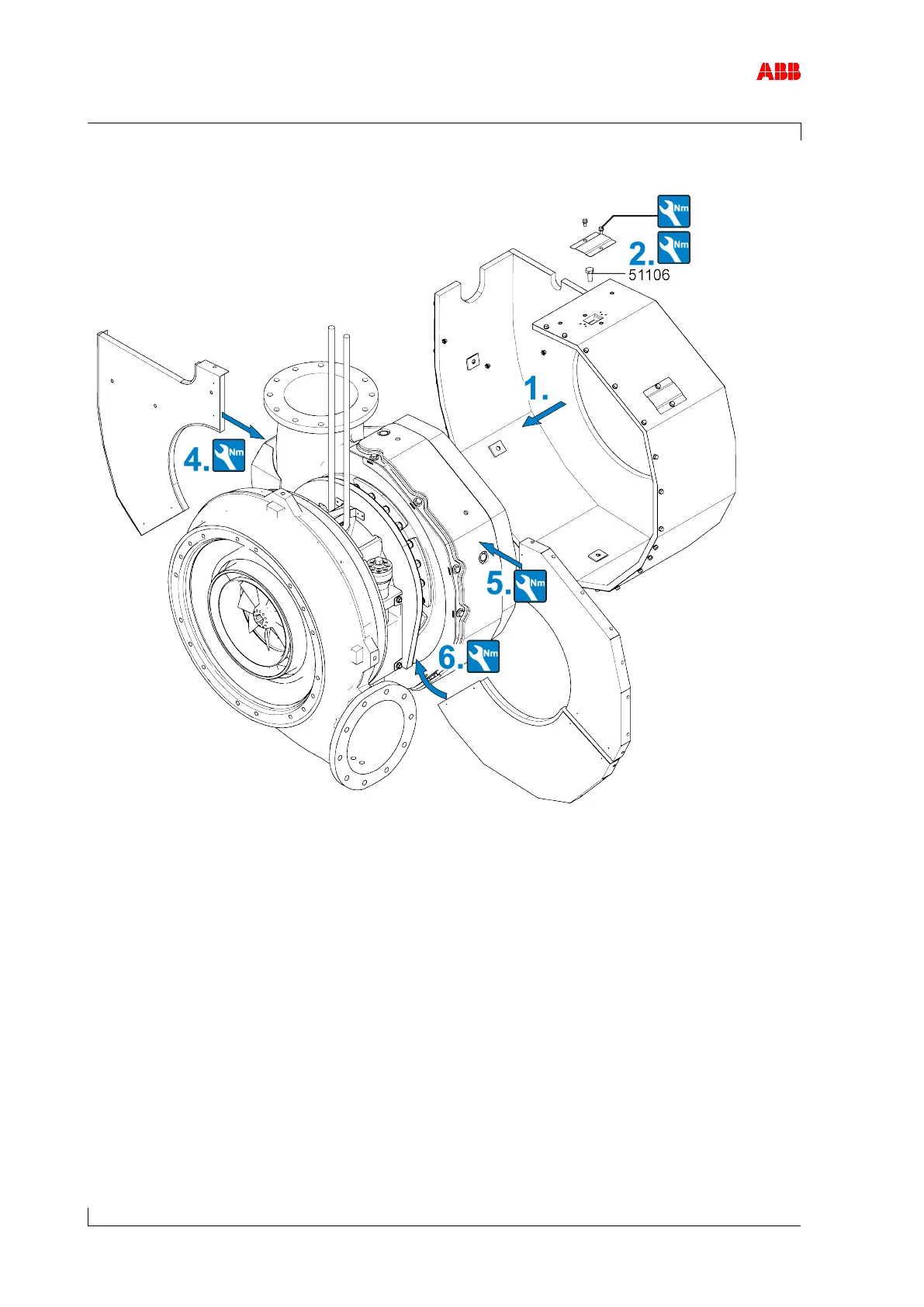

Figure 53: Fitting the insulation
 Fit the insulation according to the illustration. Observe tightening torques (see Table of
tightening torques [➙ 105]).
