1.4 Layout and function of the turbocharger

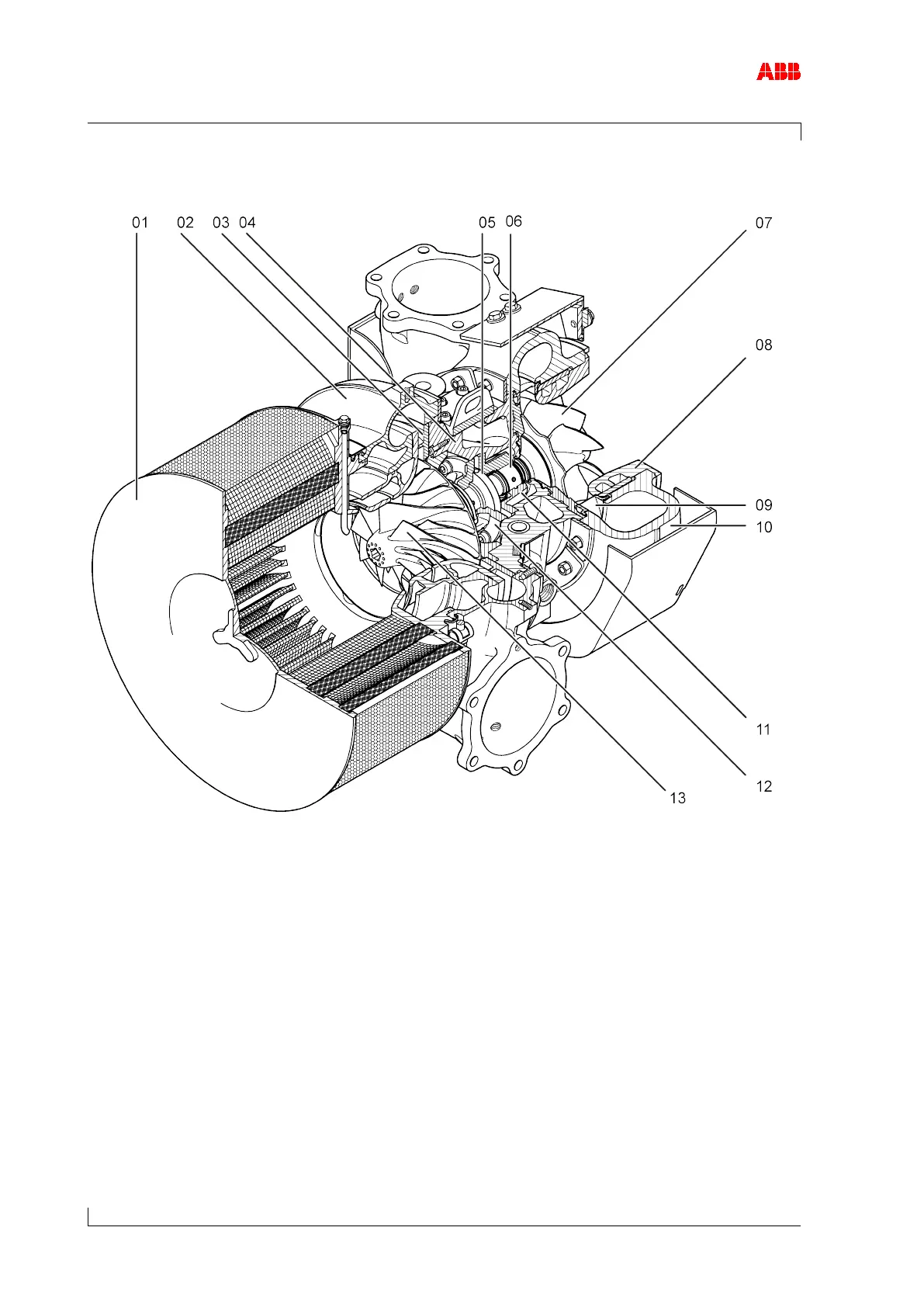

Figure 1: Layout and function of the turbocharger
01
Filter silencer / air suction branch
08
Gas outlet flange
02 Compressor casing 09 Nozzle ring
03
Diffuser
10
Turbine casing
04 Bearing casing 11 Turbine-end bearing flange
05 Axial thrust bearing 12 Compressor-end bearing flange
06
Radial plain bearing
13
Compressor wheel
07
Turbine
