2.2.3 Positioning the turbocharger for storage
WARNING
Risk of tipping
If the turbocharger is not positioned stably, it may tip over. This can result in
serious personal injury.
 Place the turbocharger on a clean, level support.
 Secure the turbocharger to prevent it from tipping over by using wooden
beams and wedges and by taking the centre of gravity into account.

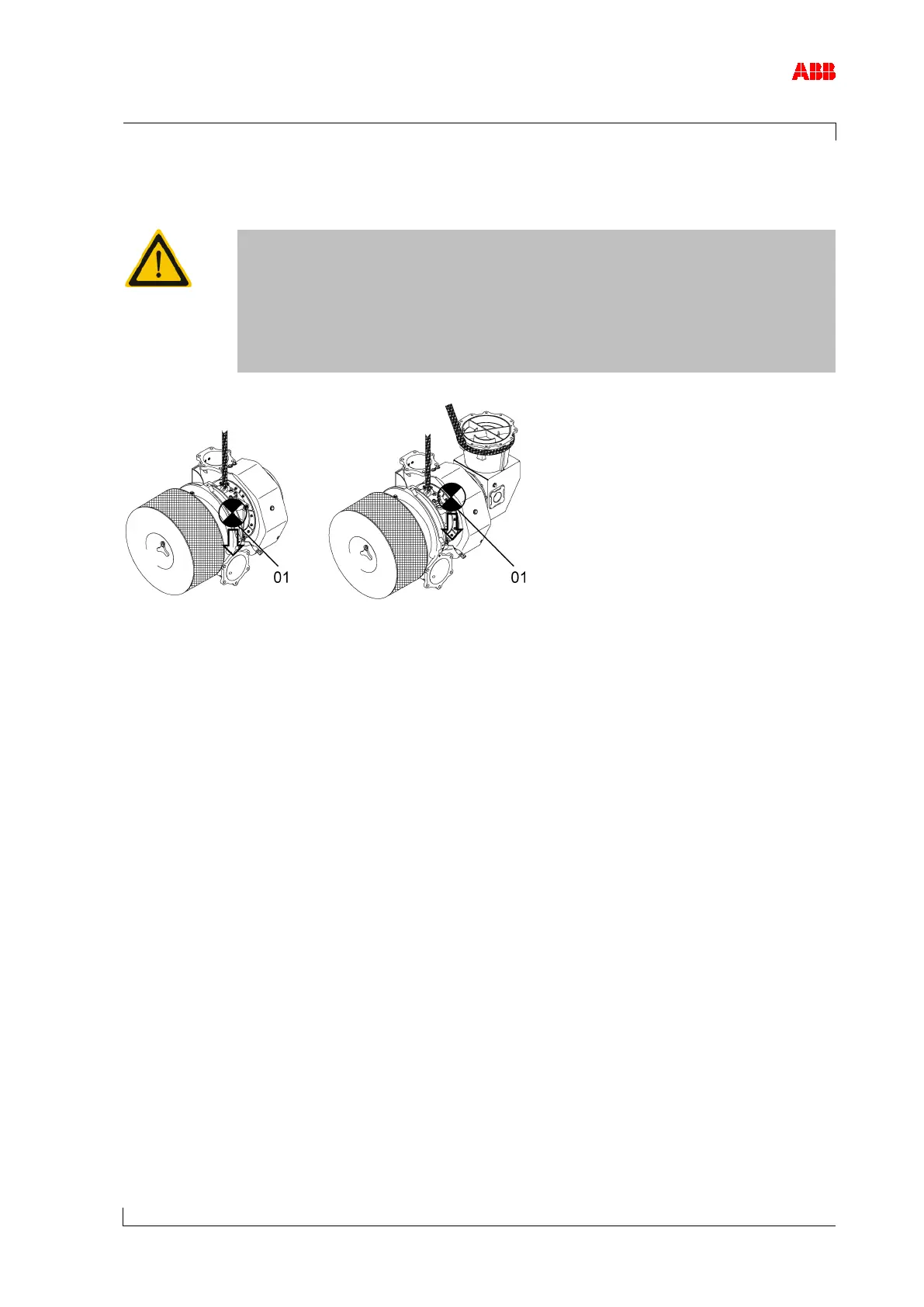

Figure 8: Turbocharger centre of gravity
01
Centre of gravity
 Remove turbocharger from engine support, set it down properly in an appropriate place
and secure it.
 Close or cover the openings of the turbocharger and support.
