2.3.6 Connecting the turbocharger
 Connect cable to speed sensor (86515).
 Connect all gas, water and air lines according to the instructions of the enginebuilder.
Version with water-cooled bearing casing
 Fit the water pipes according to the instructions of the enginebuilder.
Version with compressor wheel cooling
CAUTION
Failure of compressor wheel cooling
Any prolonged failure of the compressor wheel cooling will shorten the re-
placement interval of the compressor wheel.
 Make sure there is an uninterrupted supply of cooling air during operation.

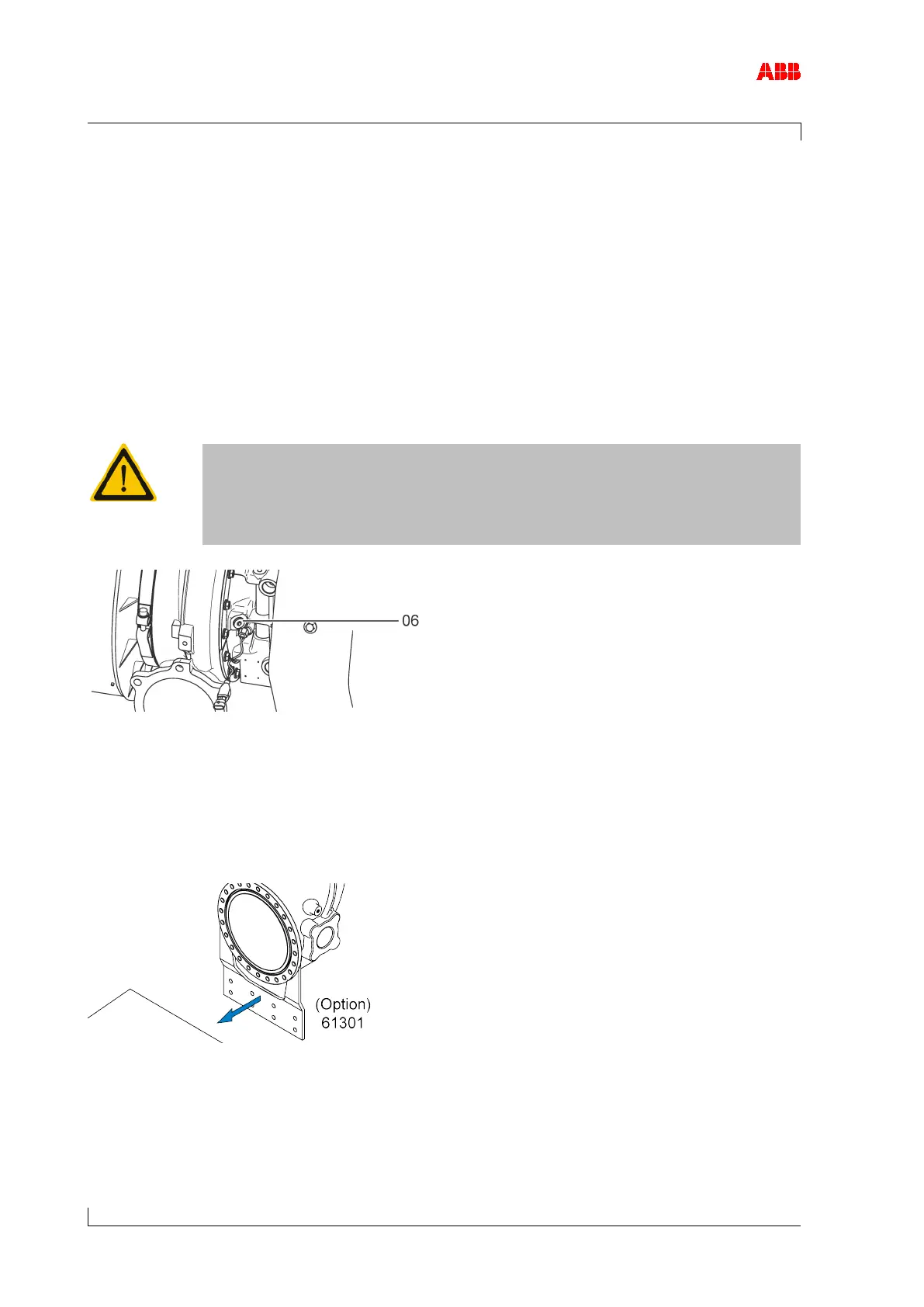

Figure 15: Connecting the compressor cooling air intake
 Remove the screw plug on the connection for the compressor wheel cooling (06) and fit
the cooling air line.
2.3.7 Attaching the support
Figure 16: Attaching the support
 If present: Attach support (61301) to engine support or to a connecting piece.
