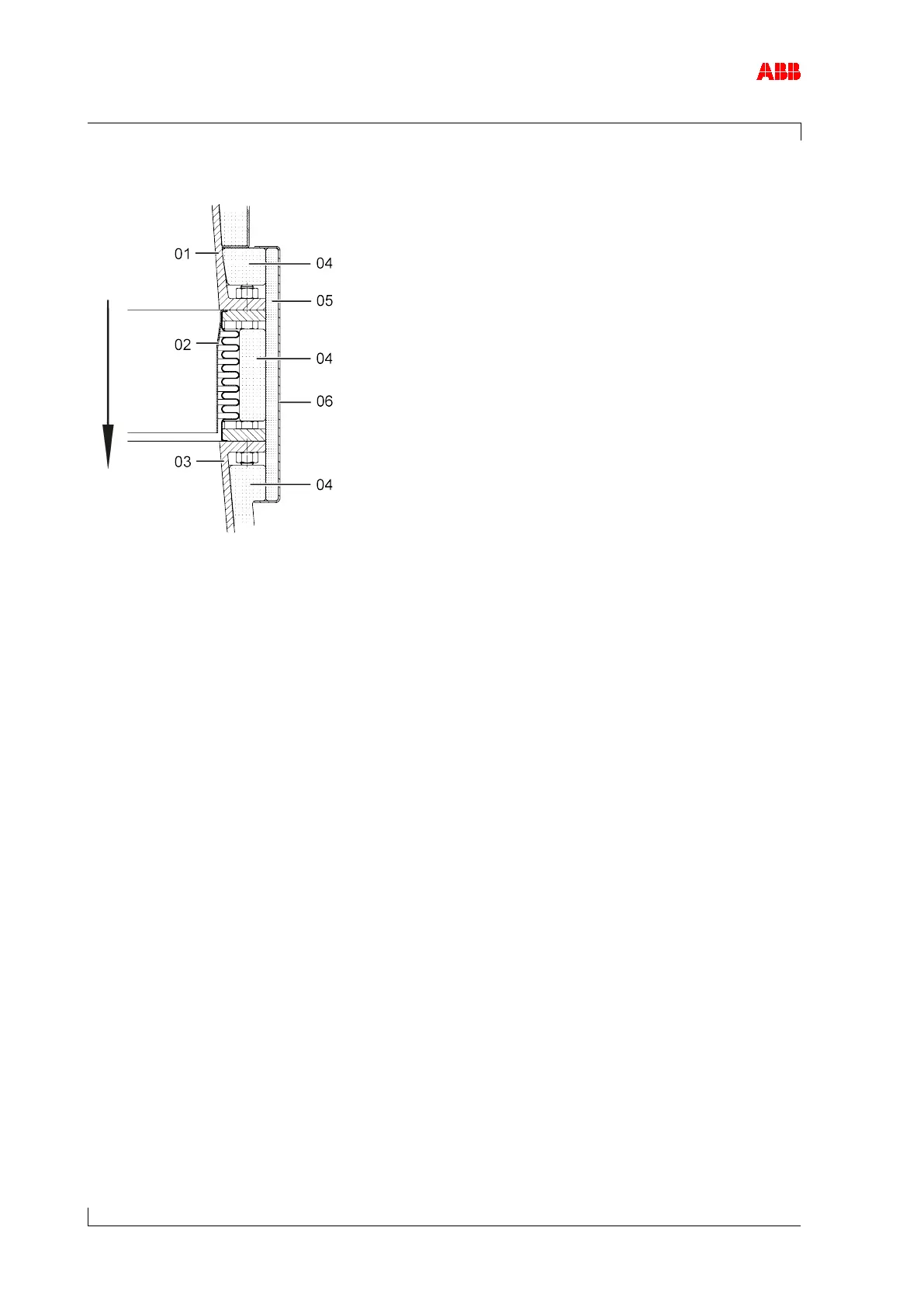

Suggestion for noise insulation, bellows
Figure 20: Noise insulation, bellows
01 Compressor casing
02 Bellows
03 Charge air duct / scavenging air duct
04 Insulation cushion
05 Insulation mat (at least 15 mm)
06 Sheet metal cover
