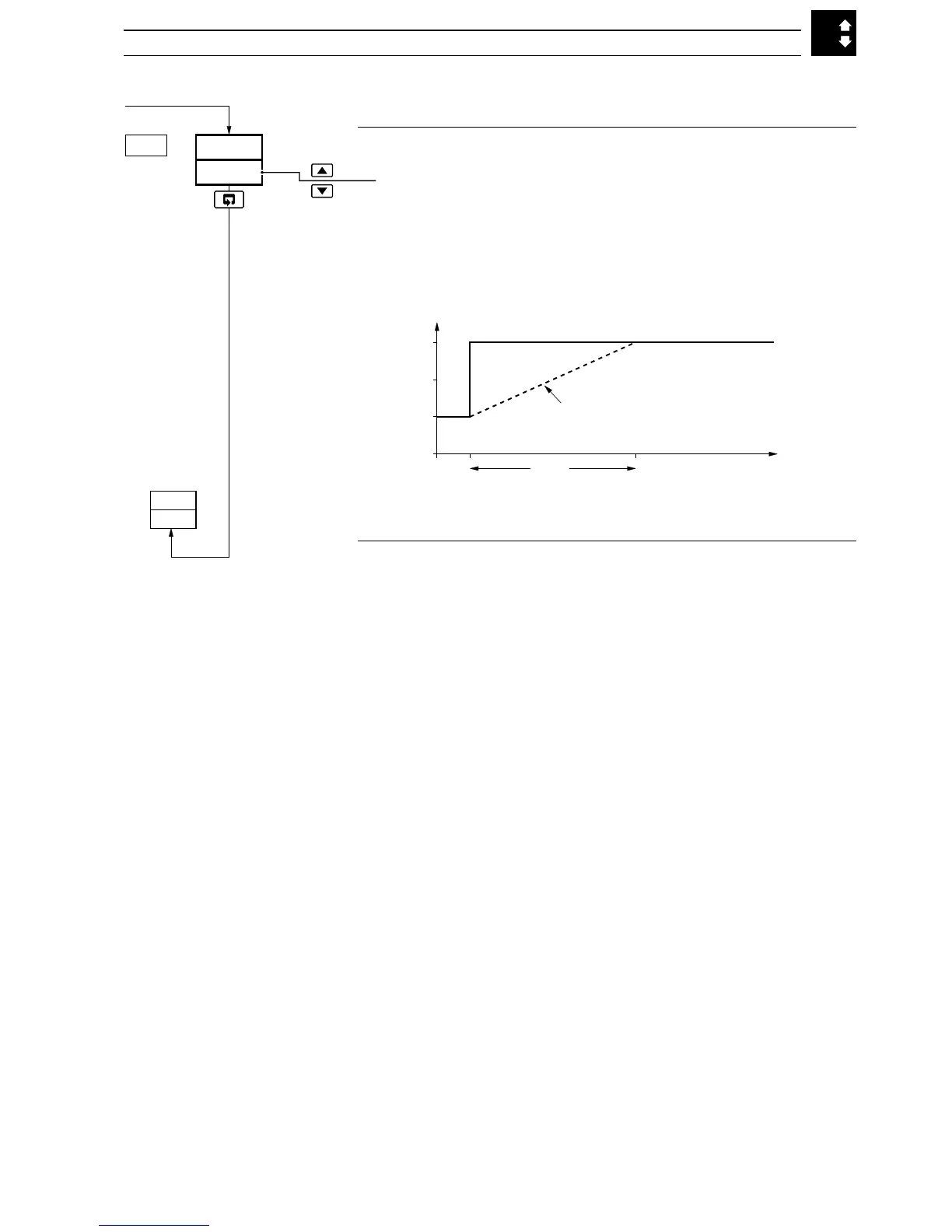

Ramp Rate
[1 to 9999 engineering units per hour, or OFF]
The Ramping Set Point facility can be used to prevent a large
disturbance to the control output when the set point value is
changed. The rate set applies to both the local and the remote
set points.
Return to top of page.
…3.3 Level 3 – Set Points
3 SET UP MODE…
3.10
OFF
r.rtE
3.10
LEV3
SEt.P
Actual (Ramping) Set Point Value
used by PID Algorithm*
0
100
200
300
1 Hour
Displayed Local Set Point Value
Time
PV
* e.g. Ramp Rate = 200 Increments/Hour
