68
E.00...E.04
…4 CONFIGURATION MODE
CAL
LEVE
E.00
0.0
OFF.2
E.03
0.0
SPn.1
E.02
0.0
OFF.1
E.01
1.0
SPn.2
E.04
0.0
100.3
0.0
100.3
0.0
100.3
0.0
100.3

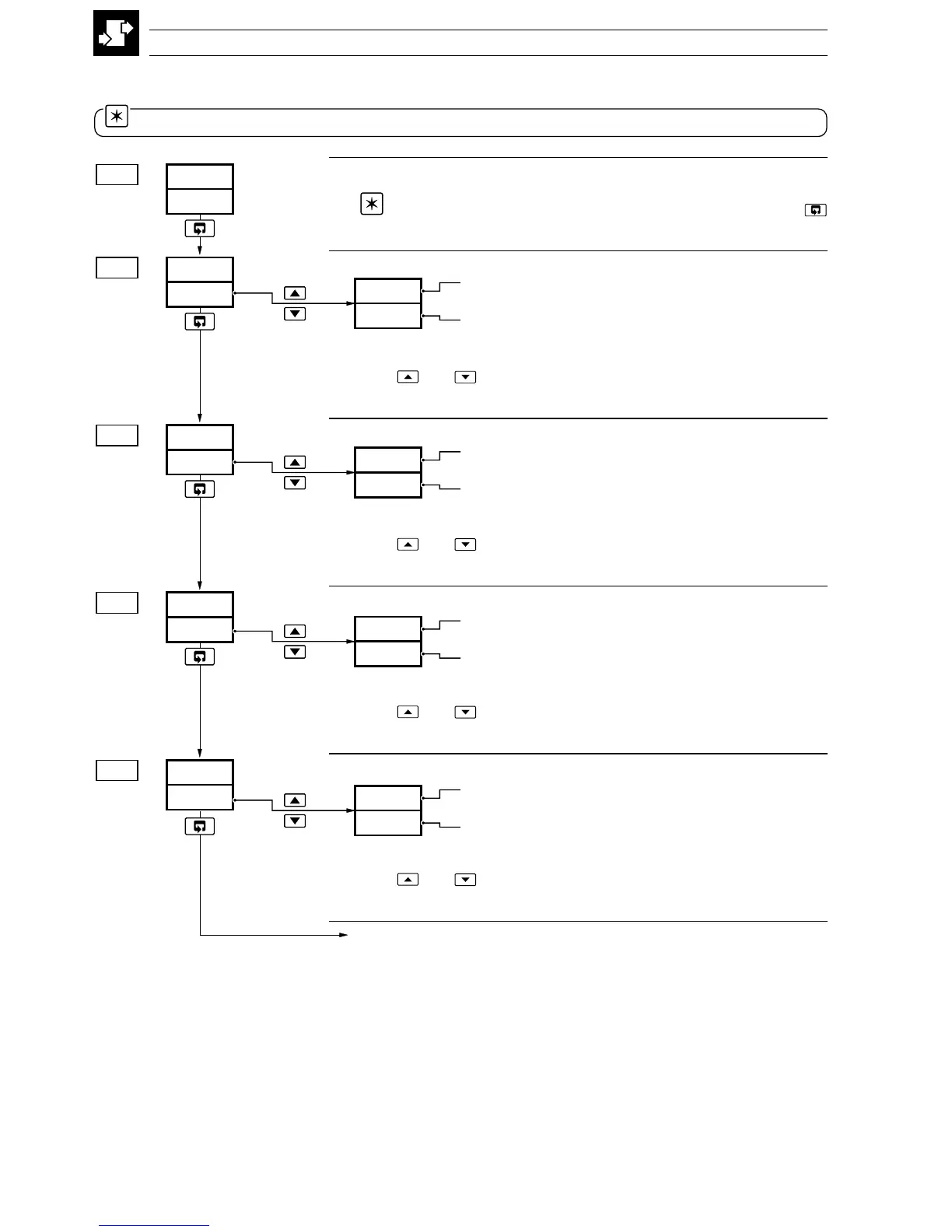

4.10 Level E – Calibration
Note. This page enables fine tuning of the inputs to eliminate system errors.
Level E – Calibration
Note. To select this frame from anywhere in this page, press the
key for a few seconds.
Analog Input 1 Offset Calibration
Analog Input 1 Value in Engineering Units
Offset [in engineering Units]
If the
and keys are not operated for three seconds the display
reverts to the offset value only.
Analog Input 1 Span Calibration
Analog Input 1 Value in Engineering Units
Span Adjustment
[0.750 to 1.250]
If the
and keys are not operated for three seconds the display
reverts to the span value only.
Analog Input 2 Offset Calibration
Analog Input 2 Value in Engineering Units
Offset [In engineering Units]
If the
and keys are not operated for three seconds the display
reverts to the offset value only.
Analog Input 2 Span Calibration
Analog Input 2 Value in Engineering Units
Span Adjustment
[0.750 to 1.250]
If the
and keys are not operated for three seconds the display
reverts to the offset value only.
Continued…
