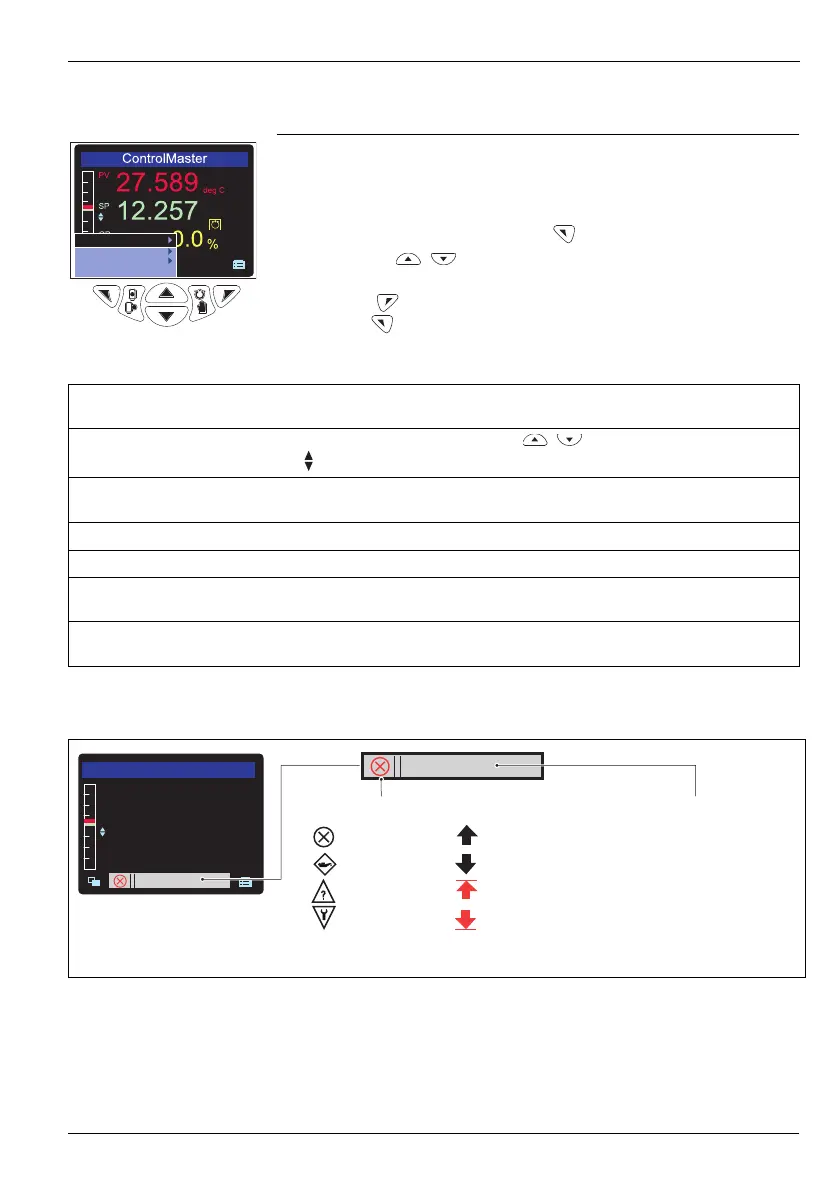

ControlMaster CM30, CM50 and CMF310
Universal process controllers,
1
/4,
1
/2 DIN and fieldmount 5 Operator Level Menus
IM/CM/ED–EN Rev. X 23
5 Operator Level Menus
5.1 Diagnostic Status Bar
Operator level menus are used to adjust setpoint(s) and output(s), select
setpoints, select the view and to enter Basic and Advanced modes (via
the Access level).
To access Operator Level menus:
1. From the Operator Page, press to view the available menus.
2. Use the / keys to scroll through the menus and menu
options.
3. Press to expand menu levels and to select menu options or
press to return to the previous menu.
Menu functions are described in Table 5.1.
Autotune Used to start or stop an autotune routine. This menu is enabled only if Autotune mode
is On.
Adjust Enables a value to be adjusted using the / keys.
The icon next to a value indicates the current adjustable selection.
Setpoint Select Selects the local setpoint to be used (displayed only if more than 1 local setpoint is
configured).
Alarm Acknowledge Acknowledges any active but unacknowledged alarms.
View Select Selects the Operator view to be displayed.
Enter Config. Level Displays the Access Level selection views – see Section 5.4, page 24 for security
options.
Profile Displays the Profile Level selection views – see Se4ction 7.6, page 60 for Profile
options.
Table 5.1 Operator Level Menu Functions
Fig. 5.1 ControlMaster Diagnostic Status Bar (ControlMaster CM30 Shown)
Adjust...
Setpoint Loop 1
View Select
Enter Config. Level
Profile
PV 1 Failed
ControlMaster
PV
SP
99.5
175.0
32.5
OP
deg C
%
PV 1 Failed
Description of diagnostic
or alarm tag.
The highest priority
diagnostic or alarm is
displayed. Other active
diagnostic / alarm states
can be viewed on the
Diagnostic View – see
page 24.
Failure
Maintenance
Out of Spec
Check Function
NAMUR (NE107) Status Icon
High Process Alarm
Low Process Alarm
High Latch Alarm
Low Latch Alarm
