ABB ControlMaster CM30 User Manual

ControlMaster CM30, CM50 and CMF310
Universal process controllers,
1
/4,
1
/2 DIN and fieldmount 4 Installation
IM/CM/ED–EN Rev. X 9
4.2.3 CMF310 Controller – Panel-, Pipe- and Wall-mount Dimensions
Dimensions in mm (in.)
* To DIN43700
**150 mm (6 in.) if (optional) cable glands fitted

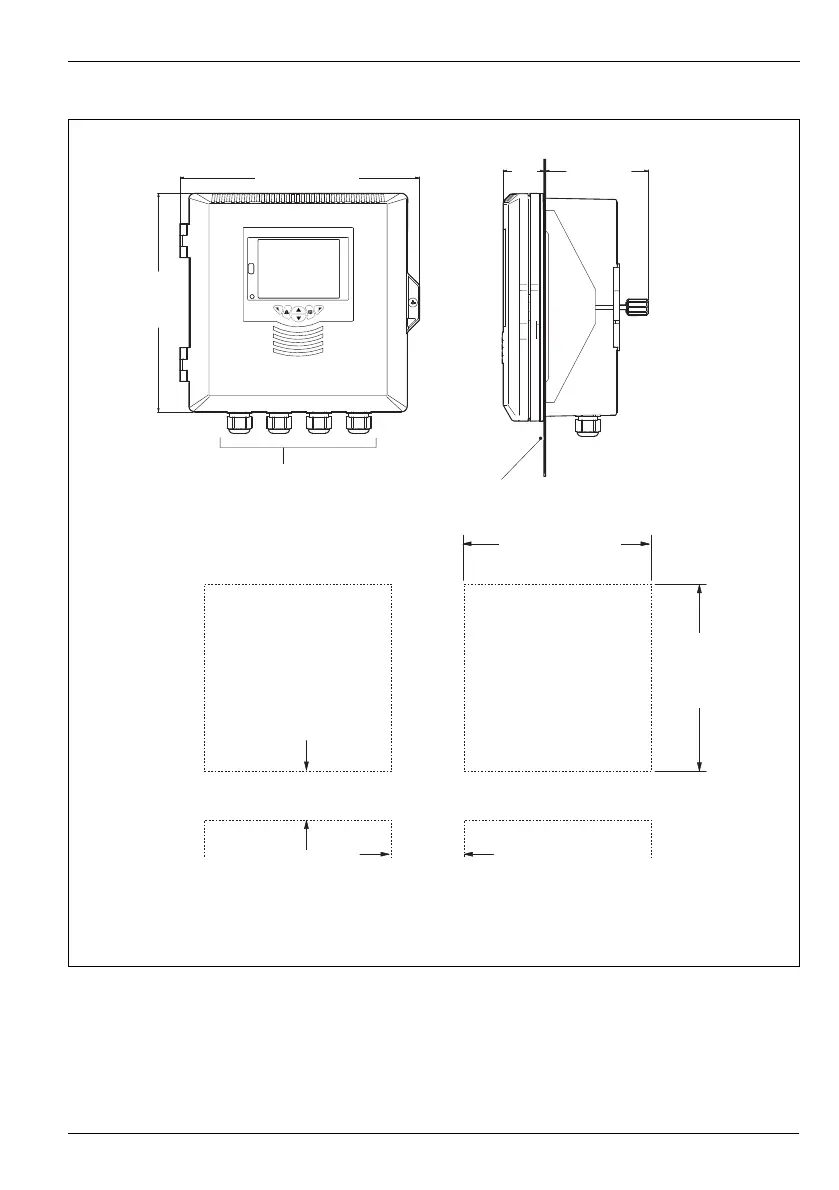

Fig. 4.5 ControlMaster CMF310 Panel-mount Option
92
(3.6)
35
(1.4)
Mounting Panel –
Maximum Thickness 6 (0.236)
Cable Gland Kit
(Optional)
 40 (1.57)
 40 (1.57)**
(7.32 )
+0.04
–0
+1.1
–0
186
(7.32 )
+0.04
–0
+1.1
–0
186
Panel Cut-out Dimensions*
213 (8.38)
194
(7.64)
