ABB ControlMaster CM30 - CMF310 Weathershield - Pipe- and Wall-Mount Installations

ControlMaster CM30, CM50 and CMF310
Universal process controllers,
1
/4,
1
/2 DIN and fieldmount 4 Installation
IM/CM/ED–EN Rev. X 11
4.2.4 CMF310 Weathershield – Pipe- and Wall-mount Installations
Dimensions in mm (in.)

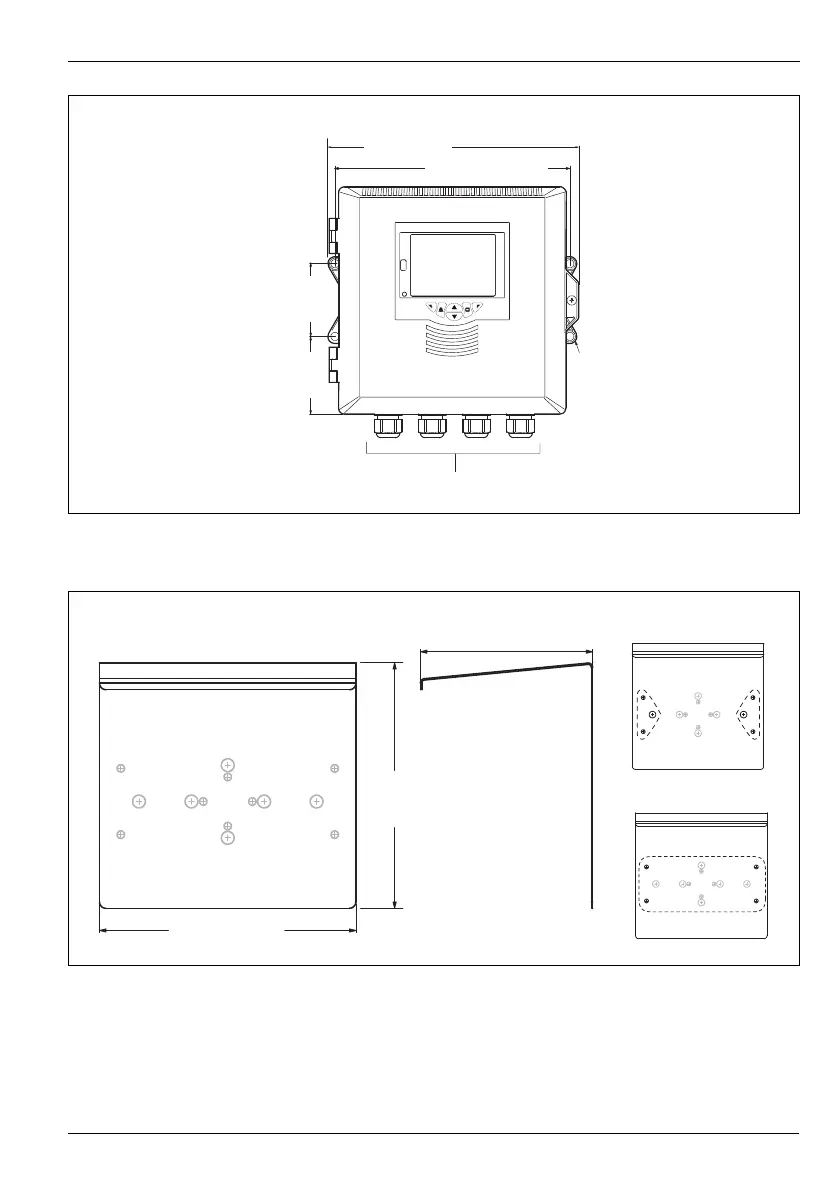

Fig. 4.7 ControlMaster CMF310 Wall-mount Option
Dimensions in mm (in.)
Fig. 4.8 ControlMaster CMF310 Weathershield (CM40/0702) – Pipe- and Wall-mount (CM40/0700) Options
214 (8.42)
62
(2.44)
66
(2.40)
200 (7.87)
Fixing Centers
Ø6.4
(0.25)
Fixing
centers
Cable Gland Kit (Optional)
175 (6.89)
240 (9.45)
240
(9.45)
Wall-mount Entries
Pipe-mount Entries
