ControlMaster CM30, CM50 and CMF310
Universal process controllers,
1
/4,
1
/2 DIN and fieldmount 3 Display Overview
6 IM/CM/ED–EN Rev. X
3.1 Front Panel Keys
1 Navigation (left) / Operator Level access key – see page 23.
2 Local / Remote setpoint mode selection key.
3 Up / Down keys – navigate up / down menus and increase / decrease displayed values.
4 Auto / Manual control mode selection key.
5 Navigation key (right) / programmable Soft Key – see page 38.

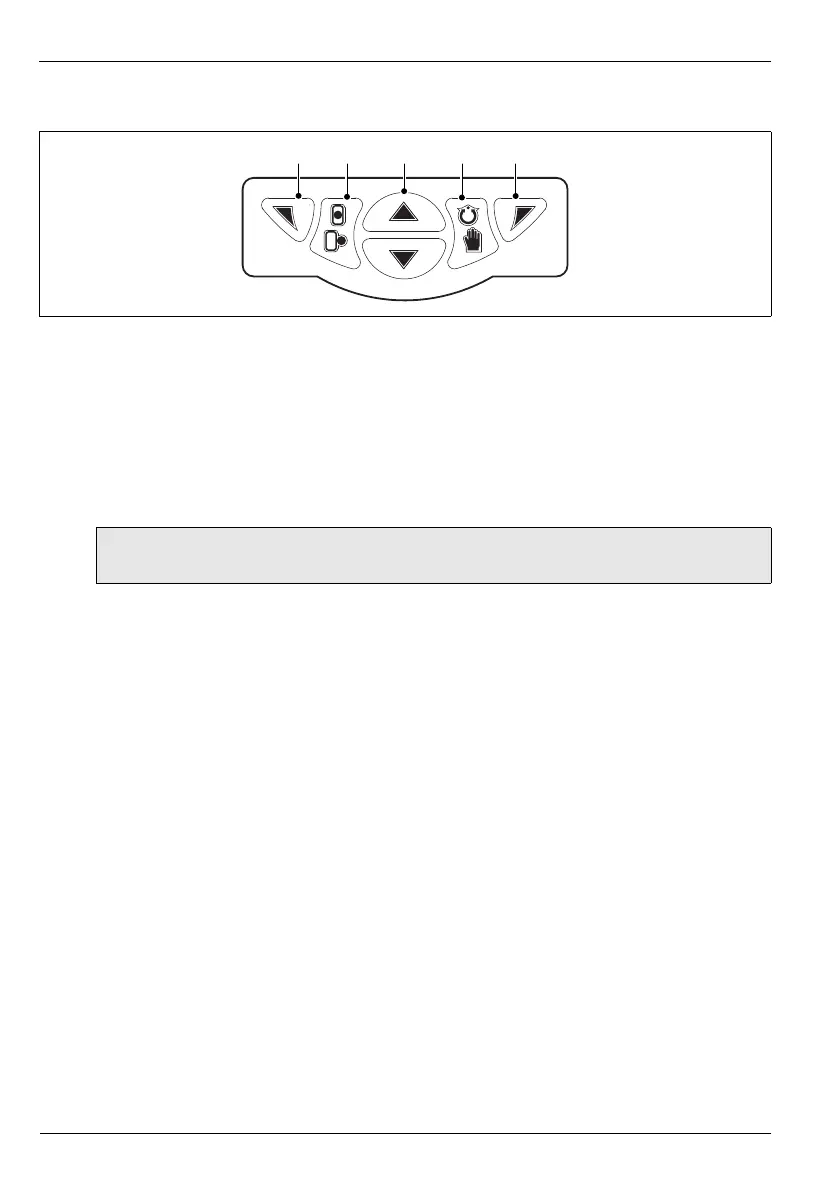

Fig. 3.2 Front Panel Keys
Note. When a Soft Key option is assigned to key 5, the Advanced Level (see page 34) must
be accessed using the Operator Level access key
1.
