ControlMaster CM30, CM50 and CMF310
Universal process controllers,
1
/4,
1
/2 DIN and fieldmount 7 Advanced Level
66 IM/CM/ED–EN Rev. X

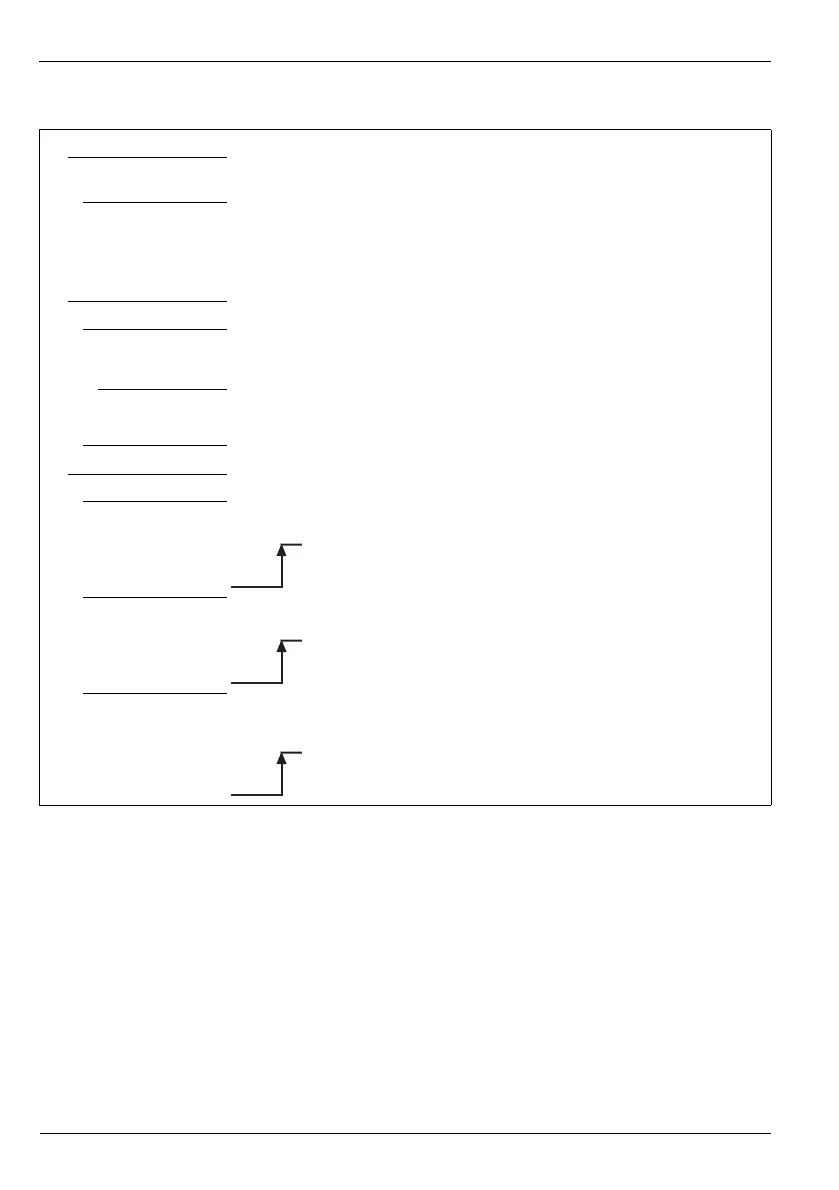

7.6.6 Profile Parameters
Common Settings
SPT Start Condition A start condition shall be specified for each control loop that determines the initial start
setpoint of the program.
Program Setpoint The program will start at the setpoint configured by Setpoint Start parameter.
Local Setpoint The program will start from the current local setpoint value.
Current PV The program will start from the current process variable value.
Applies only if the first segment is a ramp.
Ramp Control
Ramp Type Selects the Ramp Type required. The ramp type selected applies to all programs /
segments. The profile set point can be configured to increment in one of two way: for a
fixed period of time or for a number of engineering units per hour.
Rate
Defined as rate / time unit (hr, min, sec).
Time
Defined in hr:min:sec.
Ramp Units Selects the ramp rate time units required (Units/min, Units/hr, Units/sec).
Program Control
Run Selects the digital source used to start the program. The program is started on the rising
edge.
Hold Selects the digital source used to put the program into 'Operator hold' mode.
Hold mode is entered on the rising edge.
Reset Selects the digital source used to reset a running program. The program is reset on a
rising edge. If the program was running, it will run from the start. If the program was held
it will remain held at the start point.
