3.2.2.2 Data points (QA/S 4.xx.1 Energy Analyzer, Modbus)
If you are using ABB meters, the device detects the meters and the available data points after a
successful scan. The data points are visible if you open the Edit function for the required meter in
the table of meters detected. The data points can be edited as required.

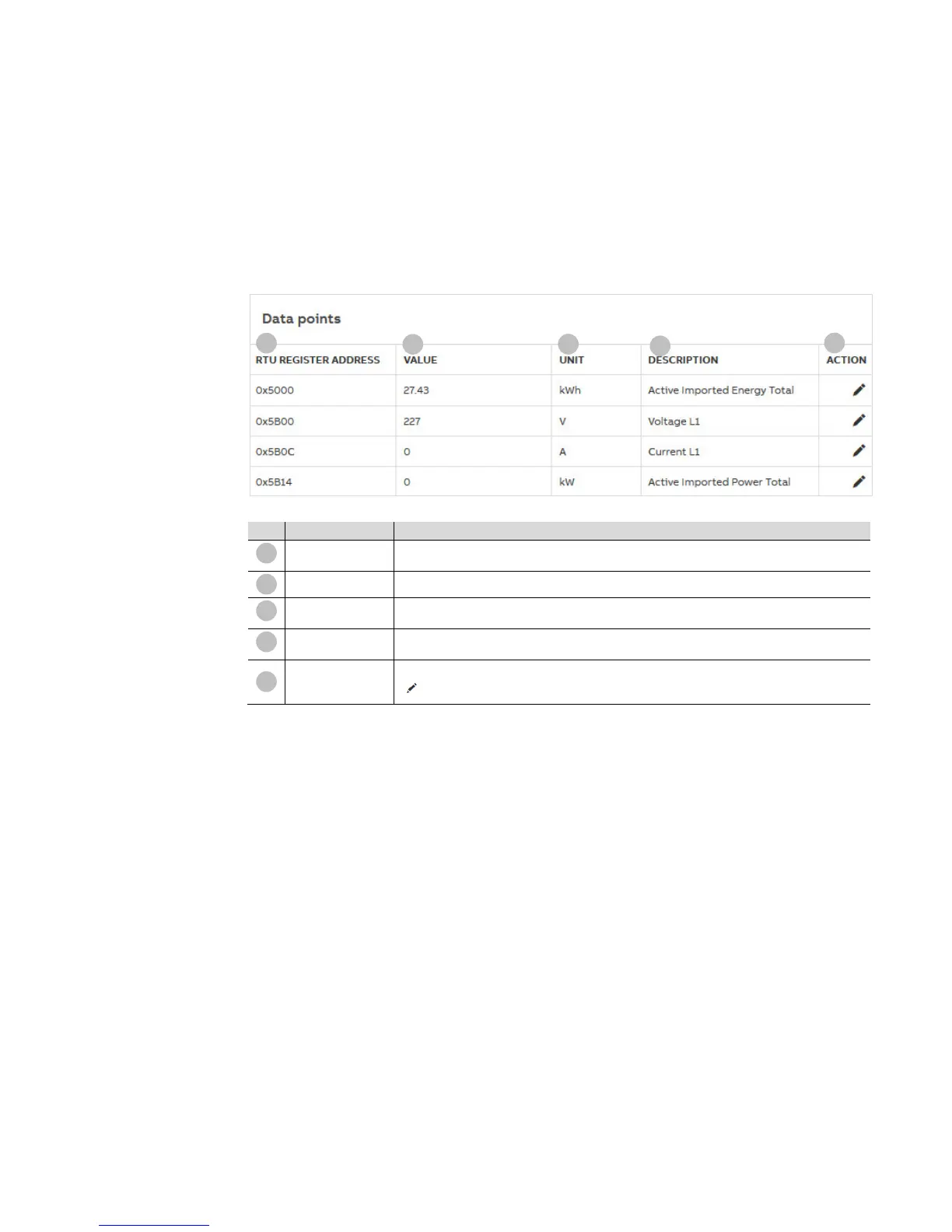

Overview of data points
No. Column header Description
RTU register
address
Shows the register address for the related data point.
Value
Shows the currently measured value for the data point.
Unit
Shows the physical unit of the related data point. Some data points may not have a unit, e.g.
number of power failures.
Description
Describes the related data point. If the data point is manufacturer-specific and needs to be
configured, this situation will be shown here.
Action
Used to edit and configure a data point
Opens the configuration window
1
2
3
4
5
1
2
3
4
5
