3.2.1.2 Data points (QA/S 3.xx.1 Energy Analyzer, M-Bus)
If you are using ABB meters, the device detects the meters and the data points available after the
scan. The data points available are listed in the Data points overview table.
Manufacturer-specific data points are marked as manufacturer-specific.

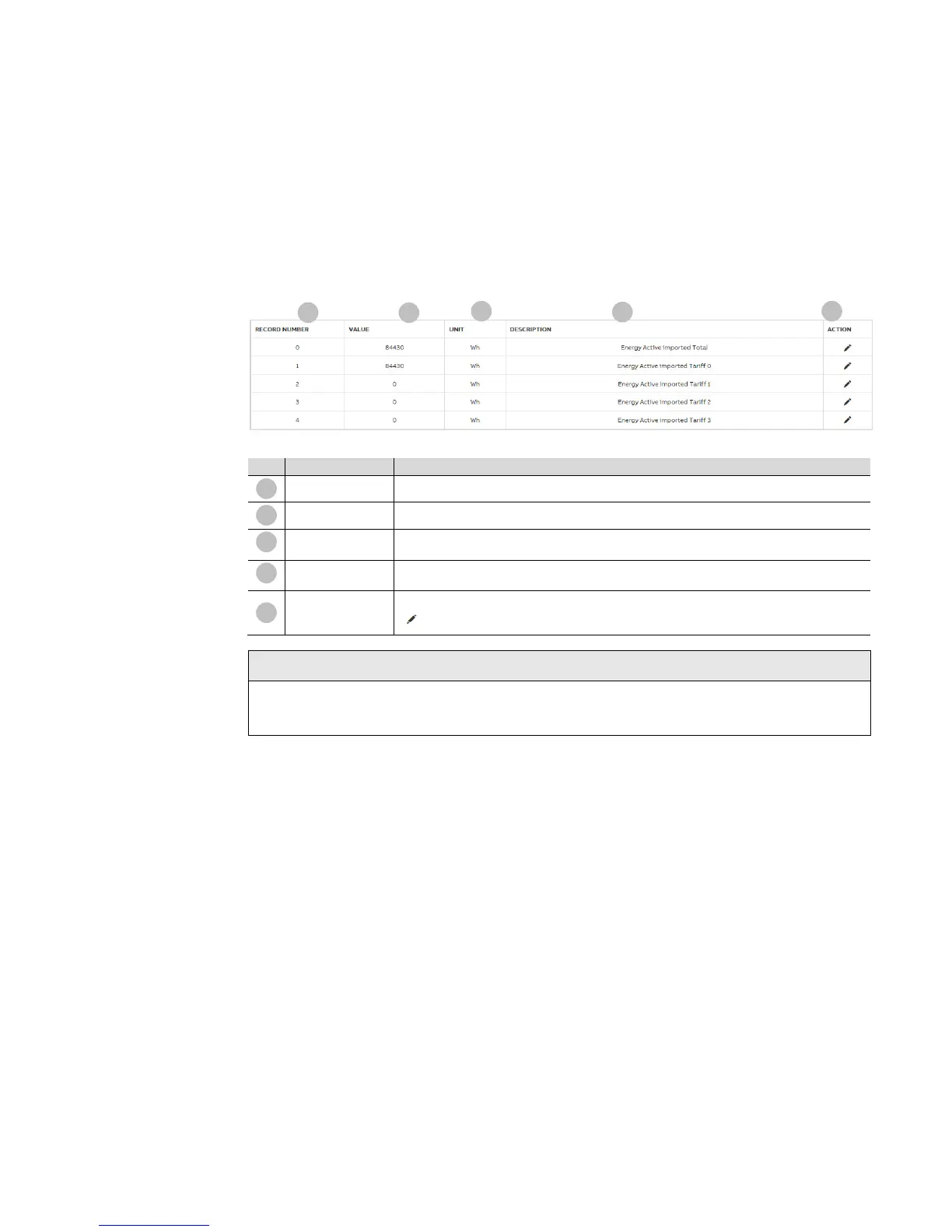

Data points overview
No. Column header Description
Record number
Shows the number of the related data point.
Value
Shows the current value of the related data point.
Unit
Shows the physical unit of the related data point. Some data points may not have a unit, e.g.
number of power failures.
Description
Describes the related data point. If the data point is manufacturer-specific and needs to be
configured, this situation will be shown here.
Action
Used to edit and configure the data point
Opens the configuration window
Note
Data points for devices compliant with the M-Bus standard are detected and can be given a new
description if necessary.
Data points that are not compliant with the M-Bus standard (manufacturer-specific) must be configured.
1
2
3
4
5
1
2
3
4
5
