10 Dismantling and fitting with removed
air inlet and gas outlet
10.1 Removing air inlets
u Mark the casing position for assembly.

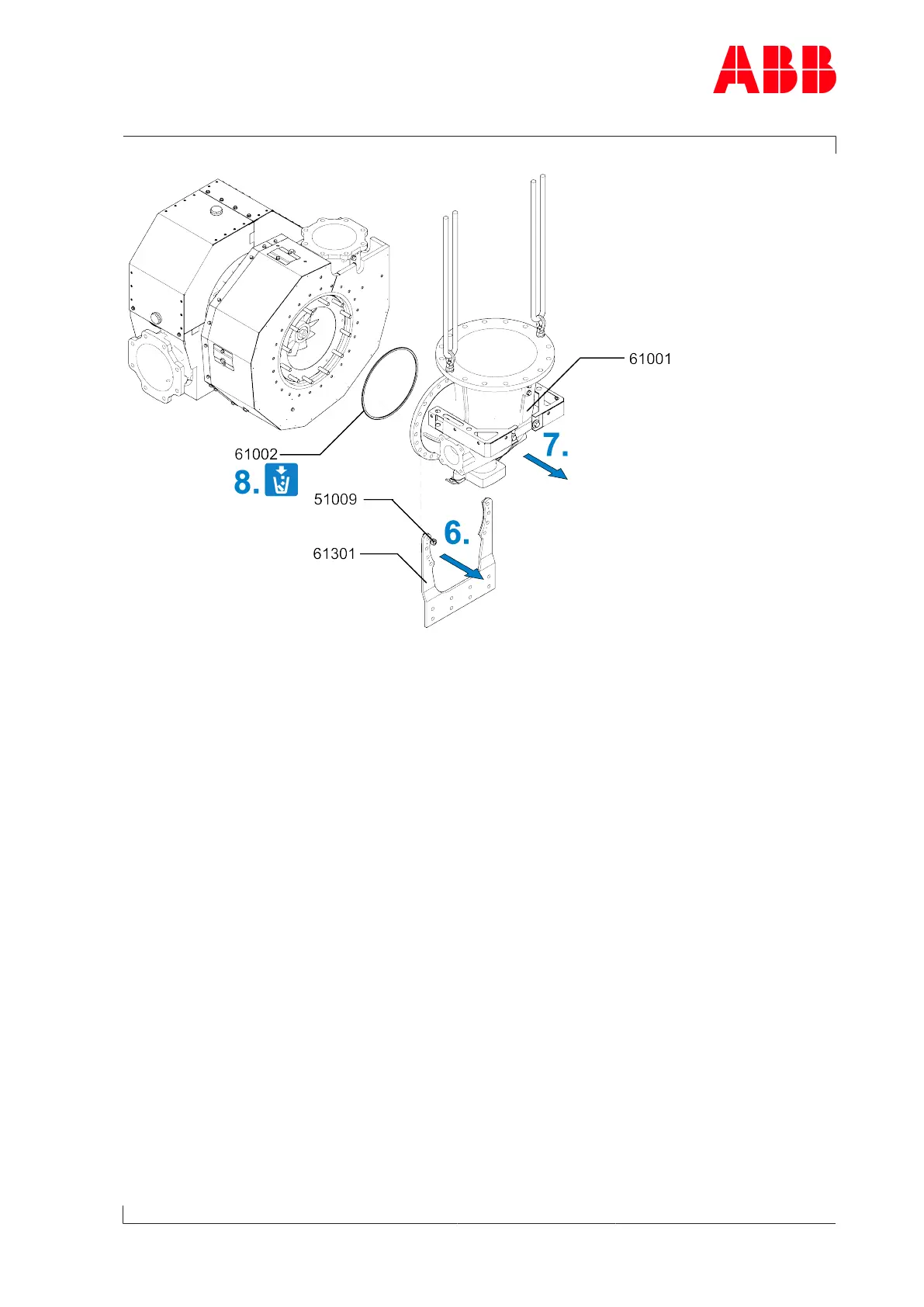

Fig.48: Removing the air inlets
1. Attach lifting gear to the filter silencer(81000) or air suction branch(82000).
2. Loosen the hexagon-head screws(72051) and remove them with fastening strips(72012).
3. Remove the filter silencer(81000) or air suction branch(82000).
4. Remove and dispose of the O-ring(81010 or 82010).
