Operation Manual / A150-M56/66/57/67 - A155-M..
18 Spare parts / 18.3 Spare part – Illustrations
© Copyright 2021 ABB. All rights reserved.
HZTL4032_EN
Rev.Q
January 2021
18.3
Spare part – Illustrations
The spare parts lists shown below are only available in English.

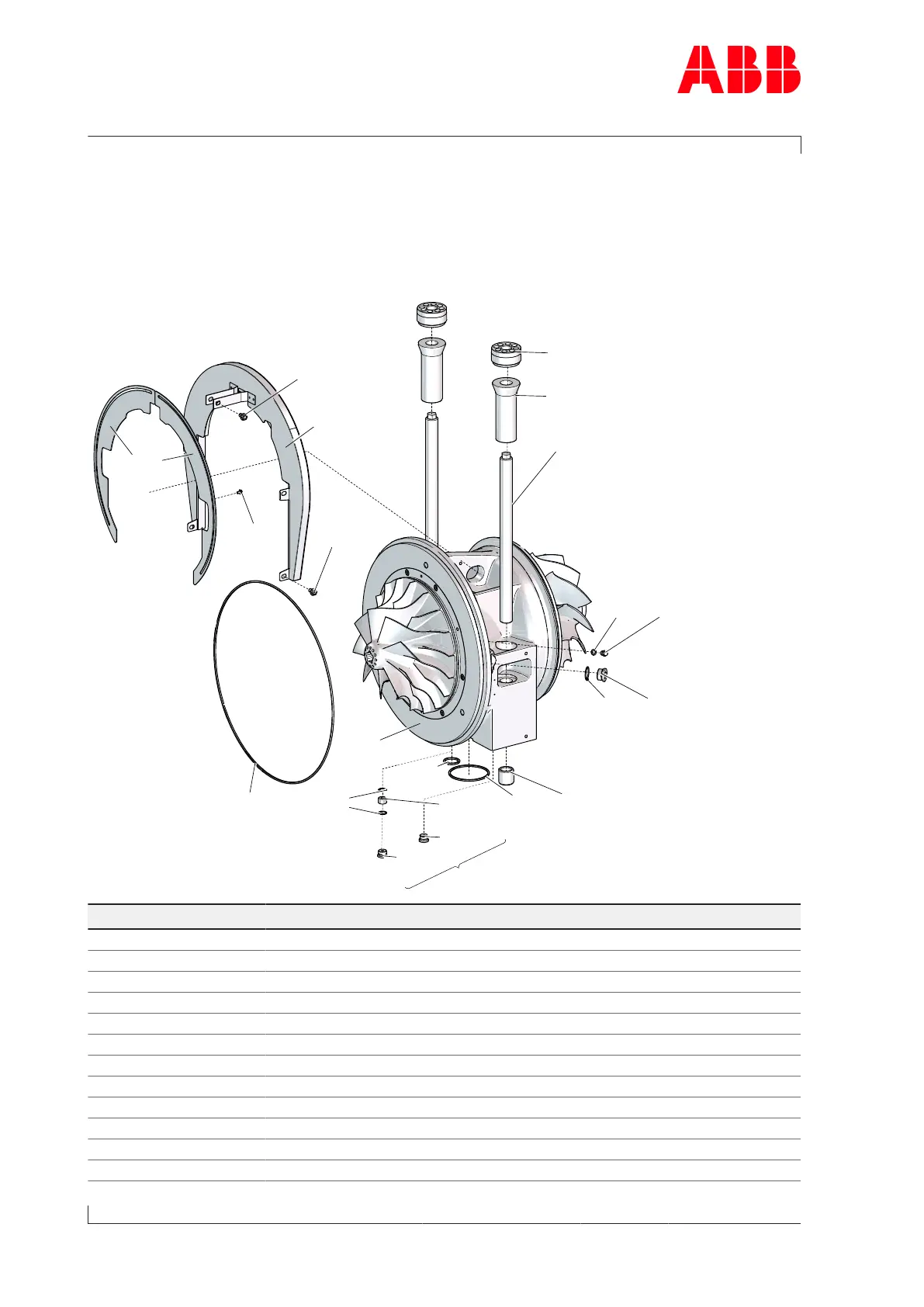

Cartridge, oil cooled
42167
42172
42170
42200*
42172
42196
42195*
42196
42197
42166
10900
42202
42193**
42012*
42194
42191
42047
42190**
42201
42189
42188
* = Av
ailable within the spare part set
** = if provided
HZTL443471 Mod. A
A150-M58/68 only
Part no.
Designation
10900
Cartridge
42012*
O-ring
42047
Screw plug
42166
Screw
42167
Cover
42170
Insulation
42172
Hexagon-head screw
42188
Hexagon-head screw
42189
Gasket
42190**
Expansion bush
42191
Threaded rod
42193**
Centering bush
Page 174 / 194
175
177
