Operation Manual / A150-M56/66/57/67 - A155-M..

3 Removing and Installing / 3.3 Installing the turbocharger

3.3.4 Connecting the turbocharger

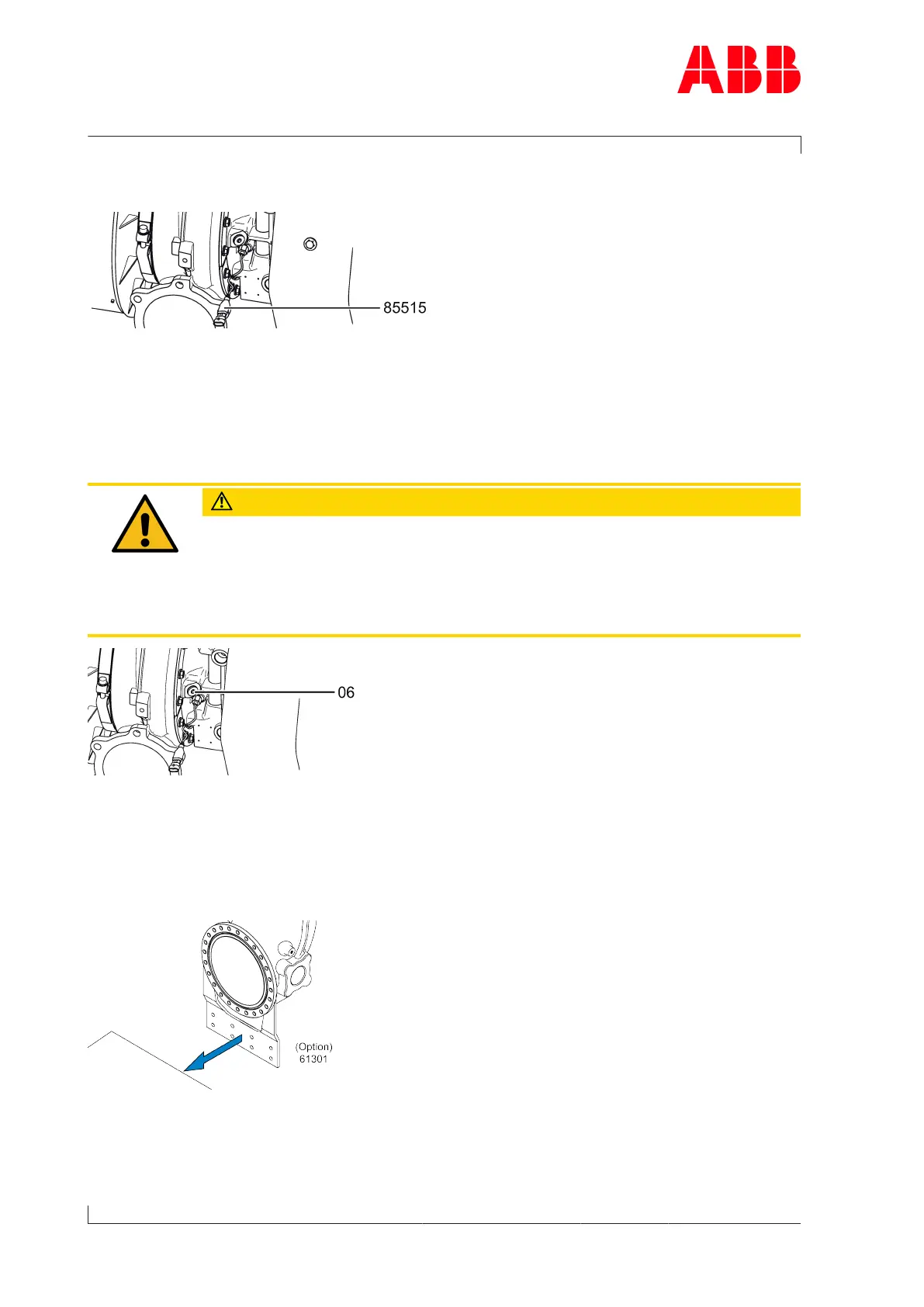

Fig.21: Connecting the speed sensor

u Connect cable to speed sensor (86515).

u Connect all gas, water and air lines according to the instructions of the enginebuilder.

Version with compressor wheel cooling

CAUTION

Failure of compressor wheel cooling

Any prolonged failure of the compressor wheel cooling will shorten the re-

placement interval of the compressor wheel.

u Make sure there is an uninterrupted supply of cooling air during opera-

tion.

Fig.22: Connecting the compressor cooling air intake

u Remove the screw plug on the connection for the compressor wheel cooling (06) and fit

the cooling air line.

3.3.5 Attaching the support

Fig.23: Attaching the support

u If present: Attach support (61301) to engine support or to a connecting piece.

Page 38 / 194
