Operation Manual / A150-M56/66/57/67 - A155-M..
12 Dismantling and fitting, special tools for fastening strips / 12.1 Ap-
plication, special tools
© Copyright 2021 ABB. All rights reserved. HZTL4032_EN Rev.Q January 2021

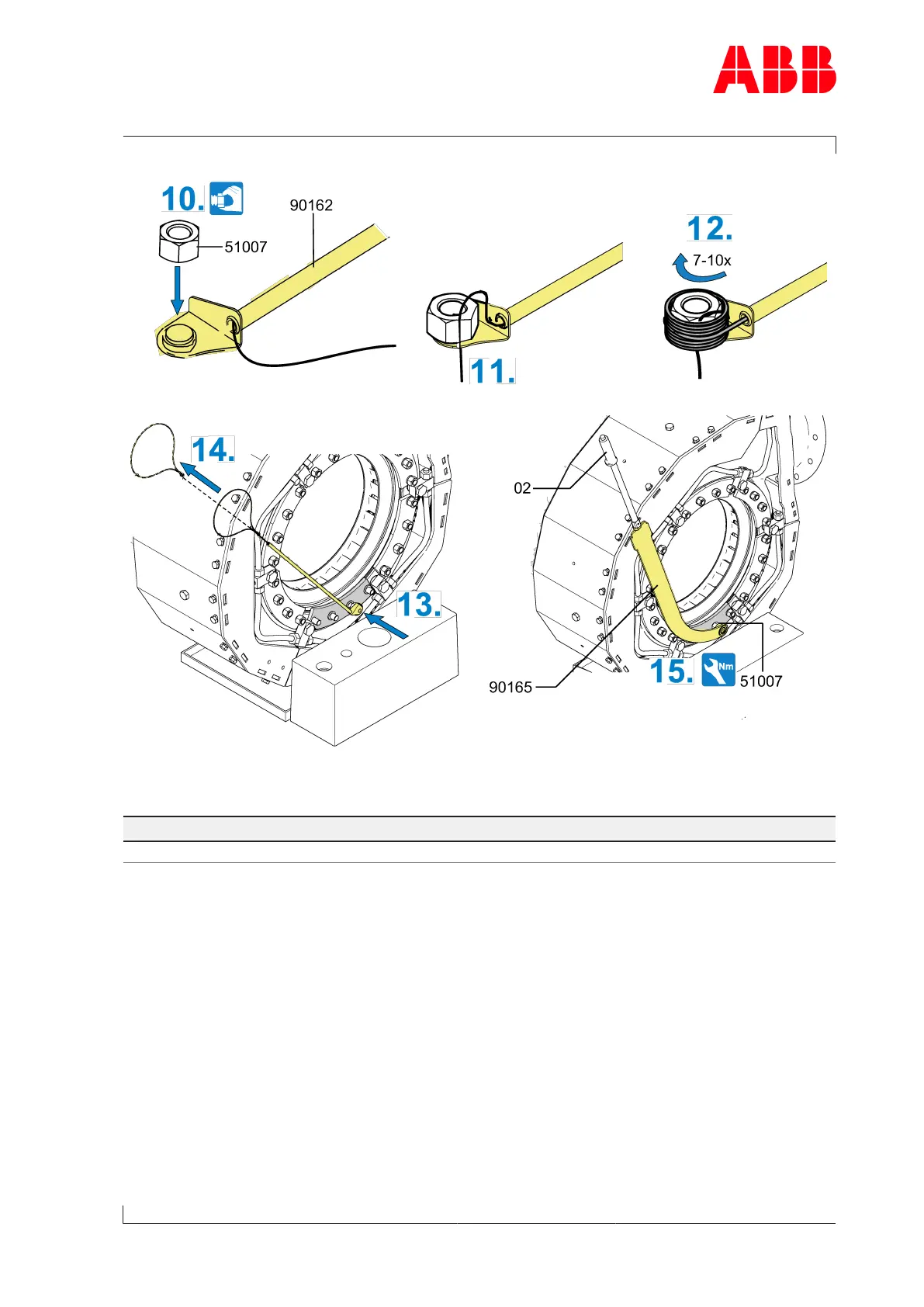

Fig.115: Attach nut
Product Size Tightening torque [Nm]
A155-M M16 70
Table71: Tightening torque (51007) with spanner holder
10. Screw nut(51007) loosely to the locking device (90162).
11. First position the cord end in the direction of the axis before winding up.
12. Wind up the cord 7-10 times around the nut and over the cord end.
13. Position the locking device (90162) with attached nut (51007) exactly onto the threaded
stud and press on.
14. Fit the nut(51007) to the set screw by pulling the cord.
15. Fit nuts(51007) with fixing washers(90165) and attached torque spanner(02). Observe
the tightening torque.
Page 157 / 194
