ABB HT611036 - Fig. 71: Installing the Cartridge Group; Table 50: Tightening Torque (51007)

Operation Manual / A150-M56/66/57/67 - A155-M..
10 Dismantling and fitting with removed air inlet and gas outlet / 10.12
Installing the cartridge group
© Copyright 2022 ABB. All rights reserved. HZTL4032_EN Rev.S February 2022

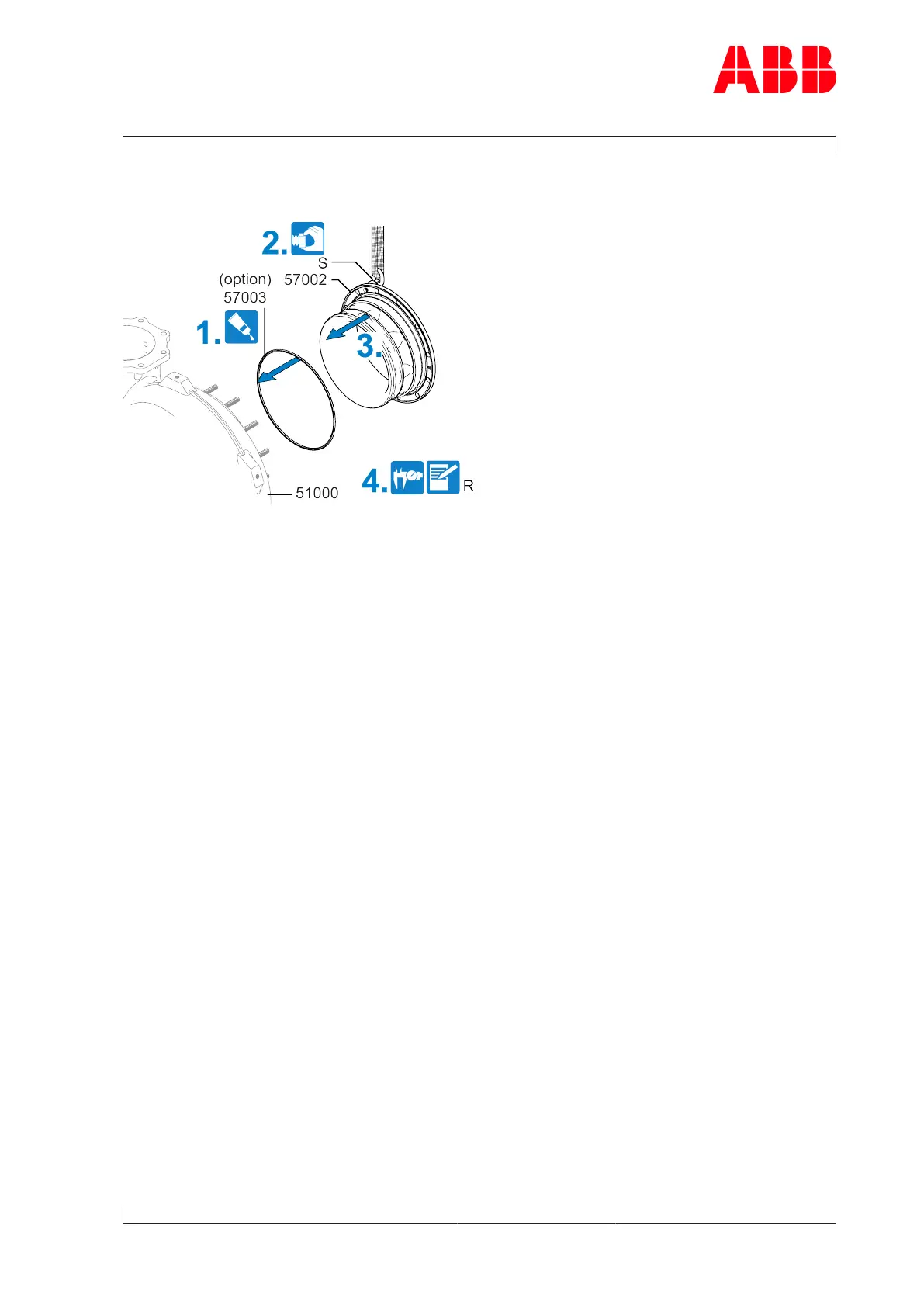

Fig.71: Installing the cartridge group
Product Size Tightening torque [Nm]
A150 M16 175
A155 M16 175
Table50: Tightening torque (51007)
8. Coat the threads of the studs(51006) with high-temperature grease.
9. Align casing position of cartridge group with marking and lower into the turbine casing.
10. Remove lifting gear cross-piece of service support.
11. Install the fastening strips(51002) with Verbus Ripp® washers(51003) and hexagon
nuts(51007). Observe the tightening torque.
