18 Spare parts / 18.3 Spare part – Illustrations
© Copyright 2021 ABB. All rights reserved. HZTL4032_EN Rev.Q January 2021

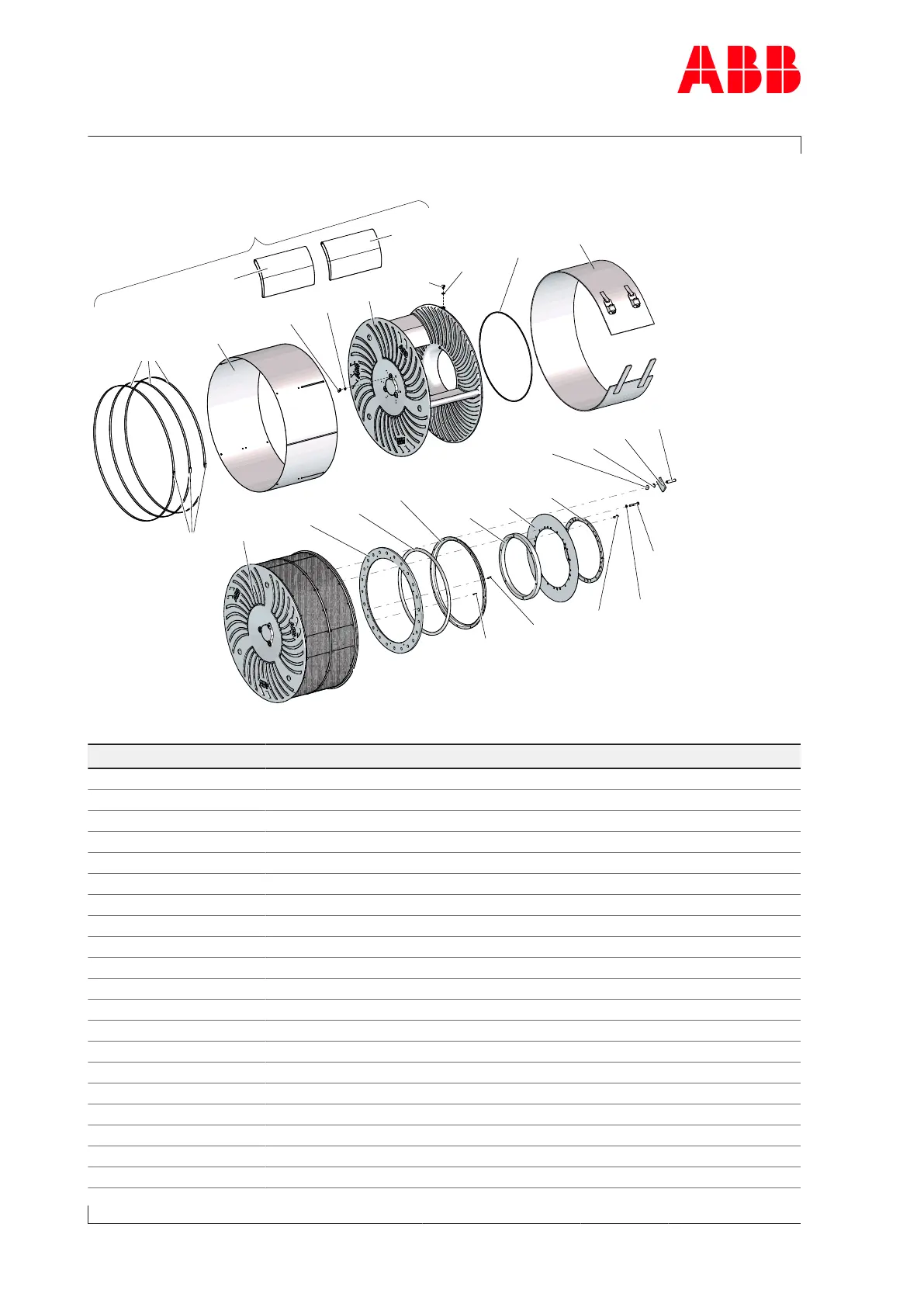

Filter silencer
72052
72055
72053
72054
81152
81153
81155
81149
81154
81150
81151
81147
81146
81148
81145
81000
81265**
81010*
81000
81137
81006
81005
81135
81171
81170
81266
81136
81270
81271
* = Available within the spare part set
** = if provided
HZTL443314 Mod. B
A155-M
Decoupled filter silencer
only
Part no. Designation
72052 Hexagon socket set screw
72053 Verbusripp locking disc
72054 Hexagon nut
72055 Fuse
81000 Filter silencer complete
81005 Screw plug
81006 Gasket
81010* O-ring
81135 Silencer body
81136 Absorption segment
81137 Cover sheet-metal
81145 Flange compressor-end
81146 Flange turbine-end
81147 Fixing ring
81148 Damping element
81149 Holding sheet metal
81150 Clamping strap
81151 Spring-type pin
81152 Hexagon-head screw
81153 Washer
