Operation Manual / A150-M56/66/57/67 - A155-M..
1 Introduction / 1.4 Layout and function of the turbocharger
© Copyright 2022 ABB. All rights reserved. HZTL4032_EN Rev.S February 2022
1.4 Layout and function of the turbocharger

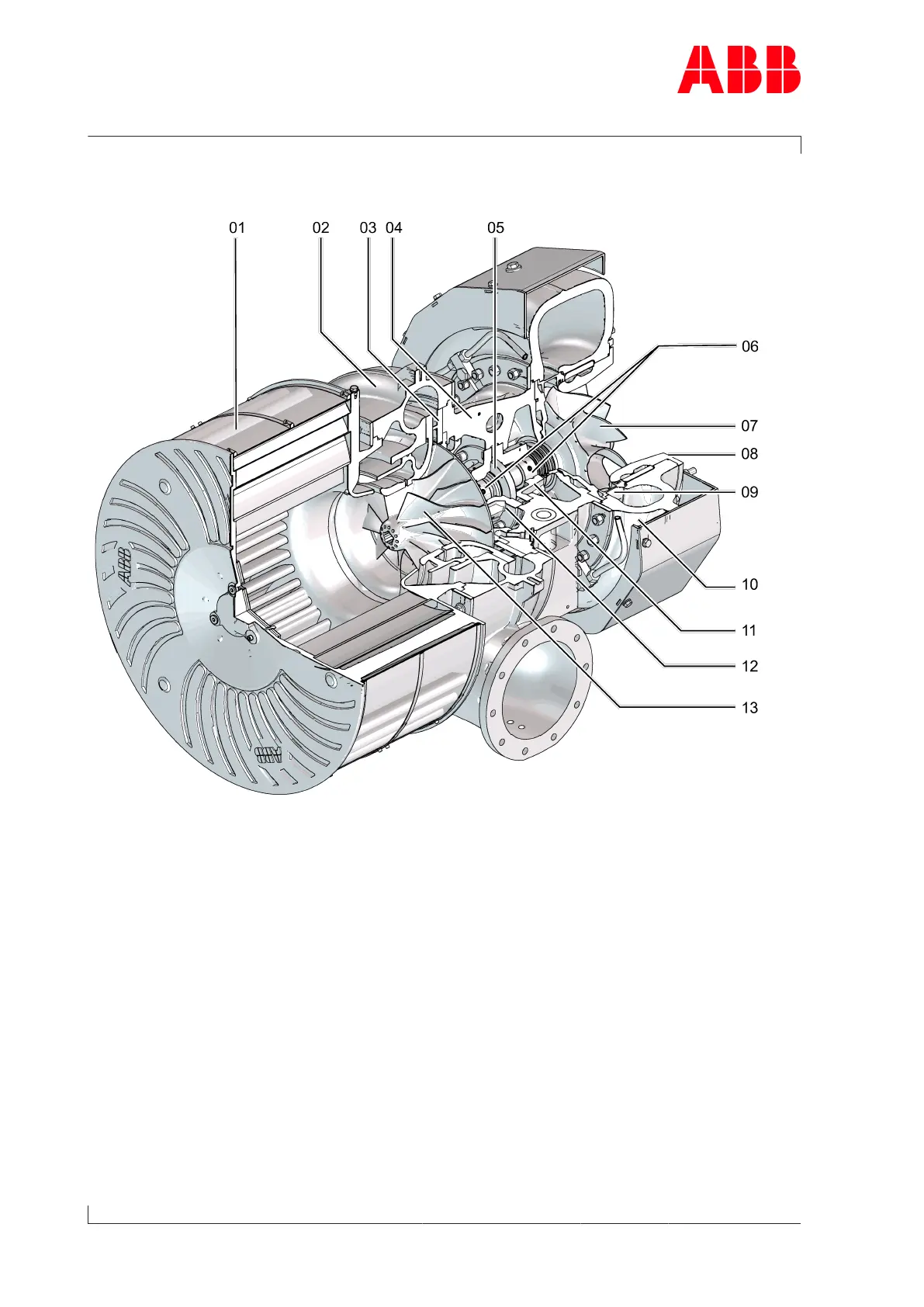

Fig.2: Layout and function of the turbocharger
01 Filter silencer / air suction branch 08 Gas outlet flange
02 Compressor casing 09 Nozzle ring
03 Diffuser 10 Turbine casing
04 Bearing casing 11 Turbine-end bearing flange
05 Axial thrust bearing 12 Compressor-end bearing flange
06 Radial plain bearing 13 Compressor wheel
07 Turbine
Page 6 / 198
