Operation Manual / A150-M56/66/57/67 - A155-M..
18 Spare parts / 18.3 Spare part – Illustrations
© Copyright 2021 ABB. All rights reserved. HZTL4032_EN Rev.Q January 2021

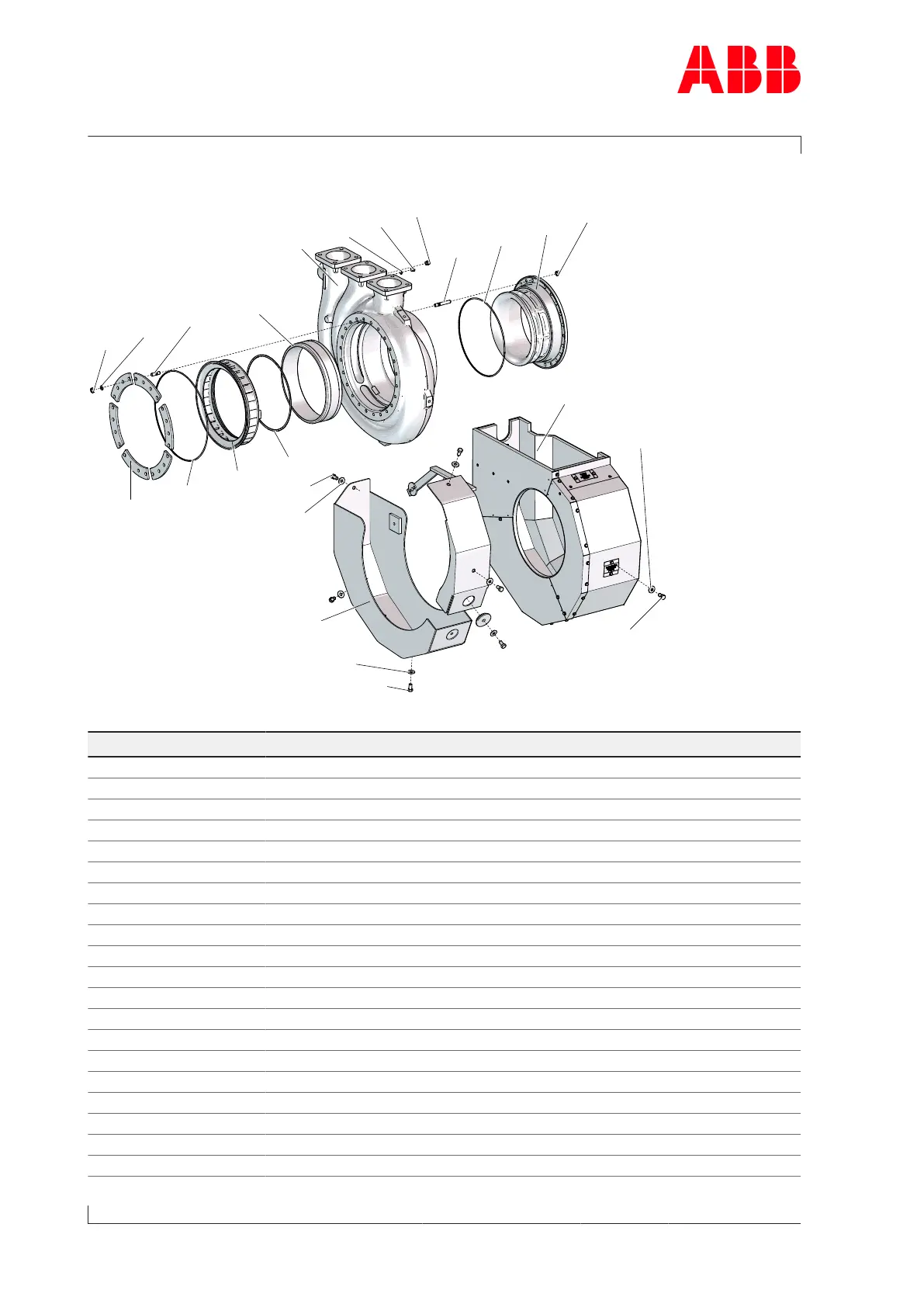

Turbine casing, 3 inlets
51009
57002
57003**
51027
51303
51302
51000
51008
57210
56005
56001
51002
51105**
51006
51003
51007
51010**
TW03/TW04
51101
51102
51101
51102
51500
51107** TW04
51102** TW03
51106** TW04
51101** TW03
** = if provided HZTL443473 Mod. A
Part no. Designation
51000 Turbine casing
51002 Fastening strip
51003 Verbusripp washer
51006 Stud
51008 Stud
51009 Hexagon nut
51010** Insulation
51027 Screw plug
51102 Tension washer
51105** Metal C-ring
51106** Hexagon-head screw
51107** Tension washer
51302 Gasket
51303 Screw plug
51500 Burst protection
56001 Nozzle ring
56005 Lamellar sealing ring
57002 Gas-outlet flange
57003** Metal C-ring
57210 Burst ring
Table83: Spare parts – Turbine casing, 3 inlets
Page 180 / 194
