Operation Manual / A150-M56/66/57/67 - A155-M..

12 Dismantling and fitting, special tools for fastening strips / 12.1 Ap-

plication, special tools

5. Loosen the nuts (51007) from the remaining fastening strips and remove the lugs(51002)

with washers (51003).

Fitting the fastening strips

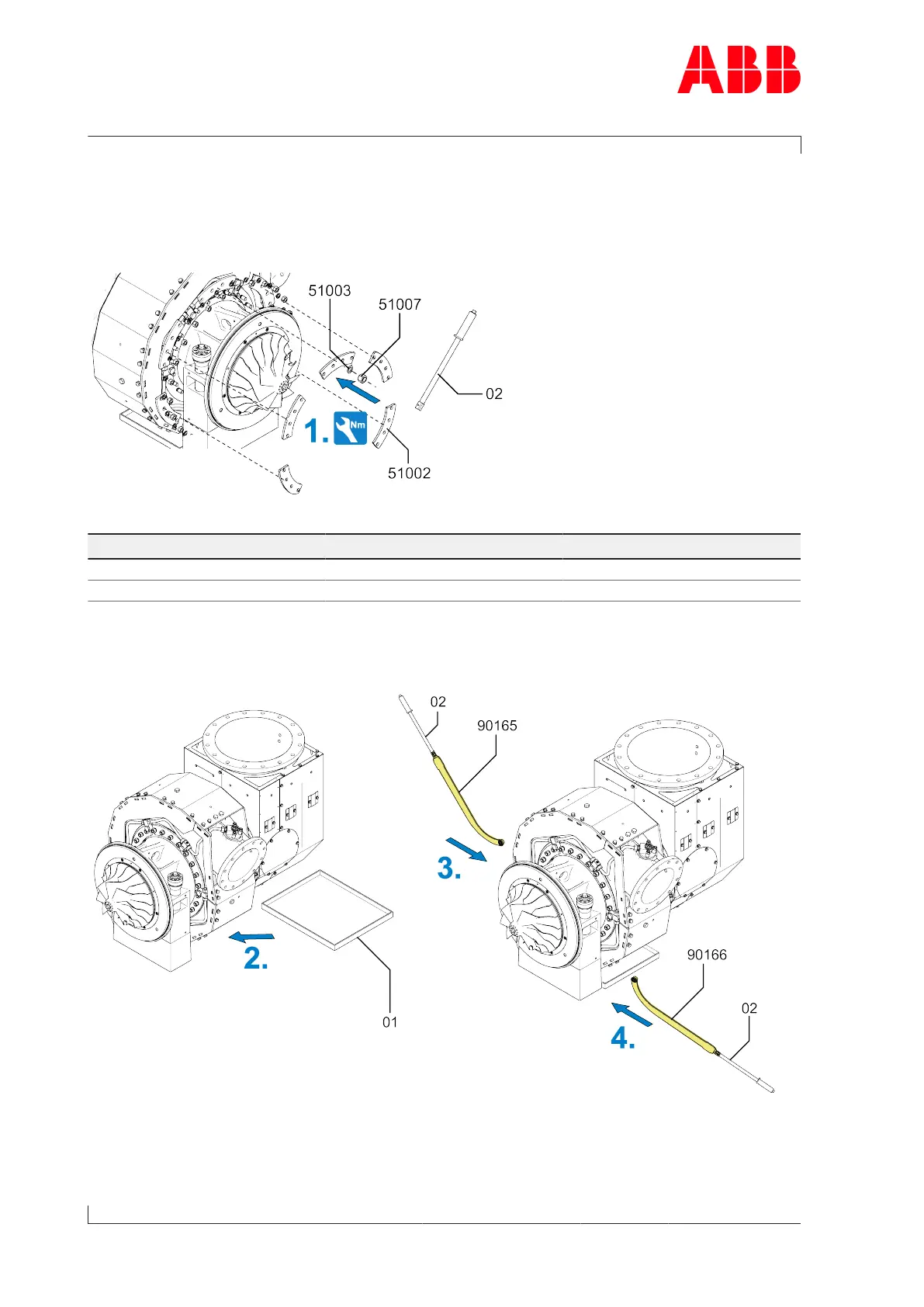

Fig.109: Fitting the upper fastening strips

Product Size Tightening torque [Nm]

A150 M16 175

A155 M16 175

Table68: Tightening torque (51007)

1. Fit the nuts (51007) of the (upper) fastening strips (51002) illustrated and tighten with a

torque spanner(02) without a spanner holder. Observe the tightening torque.

Fig.110: Fitting the bottom fastening strip

2. Position the collection tub(01) to catch any fixing elements if they fall.

3. Tighten the two nuts on one side by using the spanner holder(90165).

Page 152 / 194
