Operation Manual / A150-M56/66/57/67 - A155-M..
15 Taking out of operation at short notice / 15.4 Fitting the cover
plate
© Copyright 2021 ABB. All rights reserved. HZTL4032_EN Rev.Q January 2021
15.4 Fitting the cover plate
u Remove turbocharger (see chapter Removing and Installing →29).
¡ Gas outlet casing removed
u Fit the turbine casing with the gas outlet casing into the gas pipe again.
u Attach the cover plate (see following section).
¡ Gas outlet casing not removed
u Fit the turbine casing into the gas pipe and on the gas outlet casing again.
u Attach the cover plate (see following section).

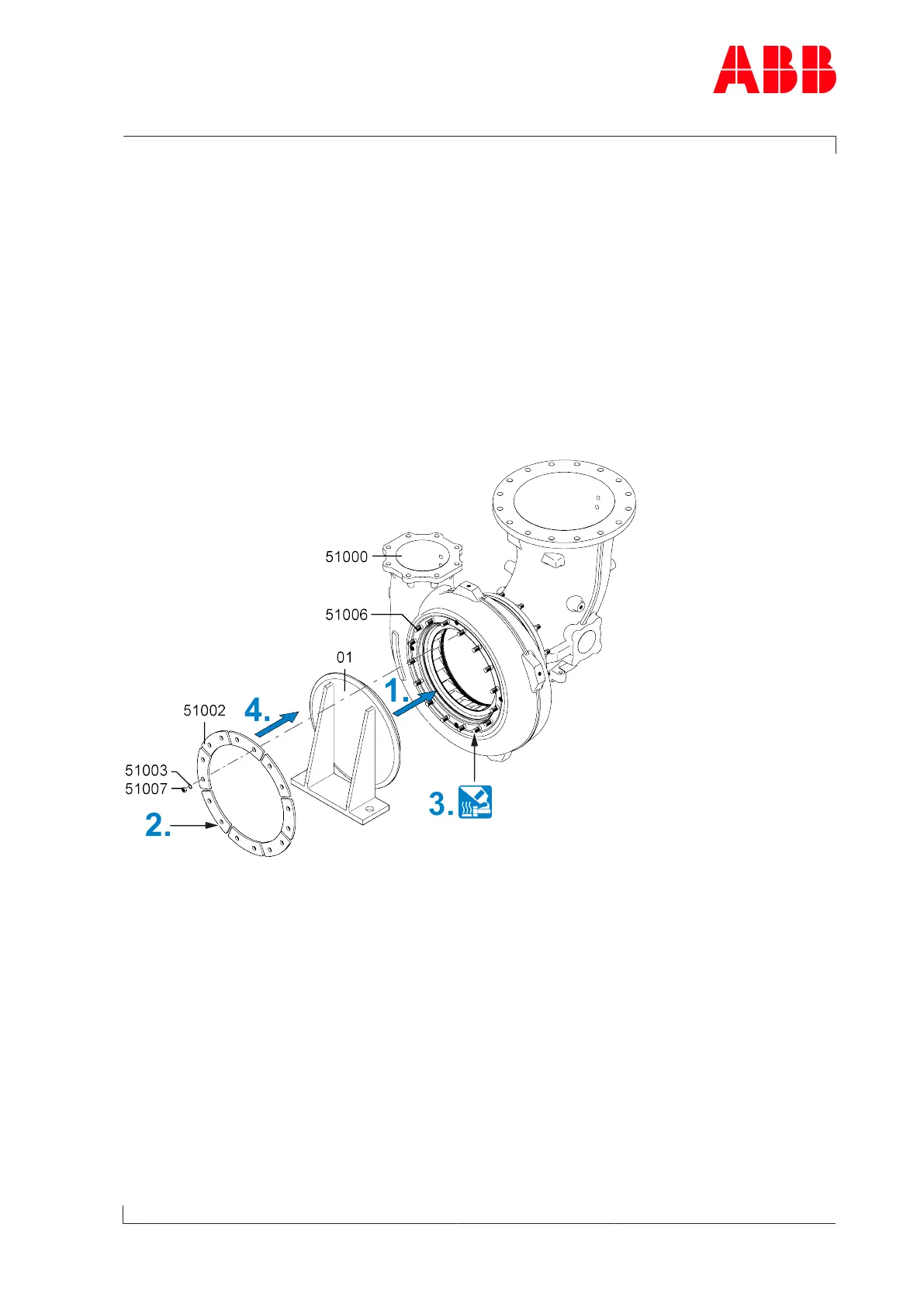

Fig.128: Fitting the cover plate
u Make sure that the oil connections in the bracket are equipped with gaskets.
1. Close opening in turbine casing(51000) with cover plate(01).
2. Thoroughly clean the fastening strips (51002) before assembly.
3. Coat the threads of the studs (51006) with high-temperature grease.
4. Fasten cover plate (01) to turbine casing (51000) with fastening strips (51002), Verbus
Ripp® washers (51003) and nuts (51007) and screw to bracket.
Page 167 / 194
