Operation Manual / A150-M56/66/57/67 - A155-M..
11 Dismantling and fitting, cartridge concept / 11.4 Removing the
nozzle ring
© Copyright 2021 ABB. All rights reserved.
HZTL4032_EN
Rev.Q
January 2021
11.4
Removing the nozzle ring

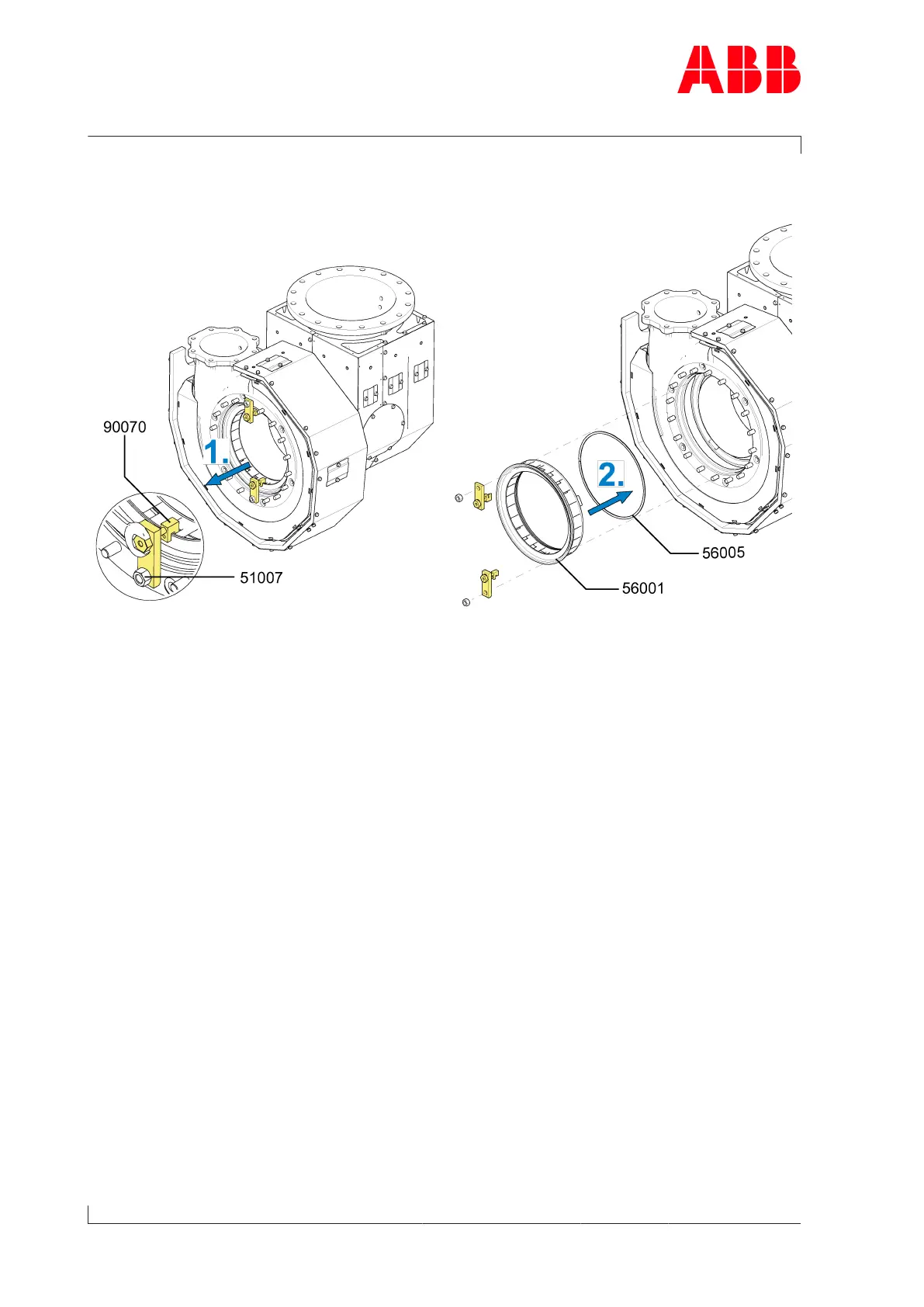

Fig.93: S_05180
1.
Pull out the nozzle ring (56001) with the two extraction devices (90070).
2.
Remove the lamellar sealing ring (56005).
Page 138 / 194
