Operation Manual / A150-M56/66/57/67 - A155-M..

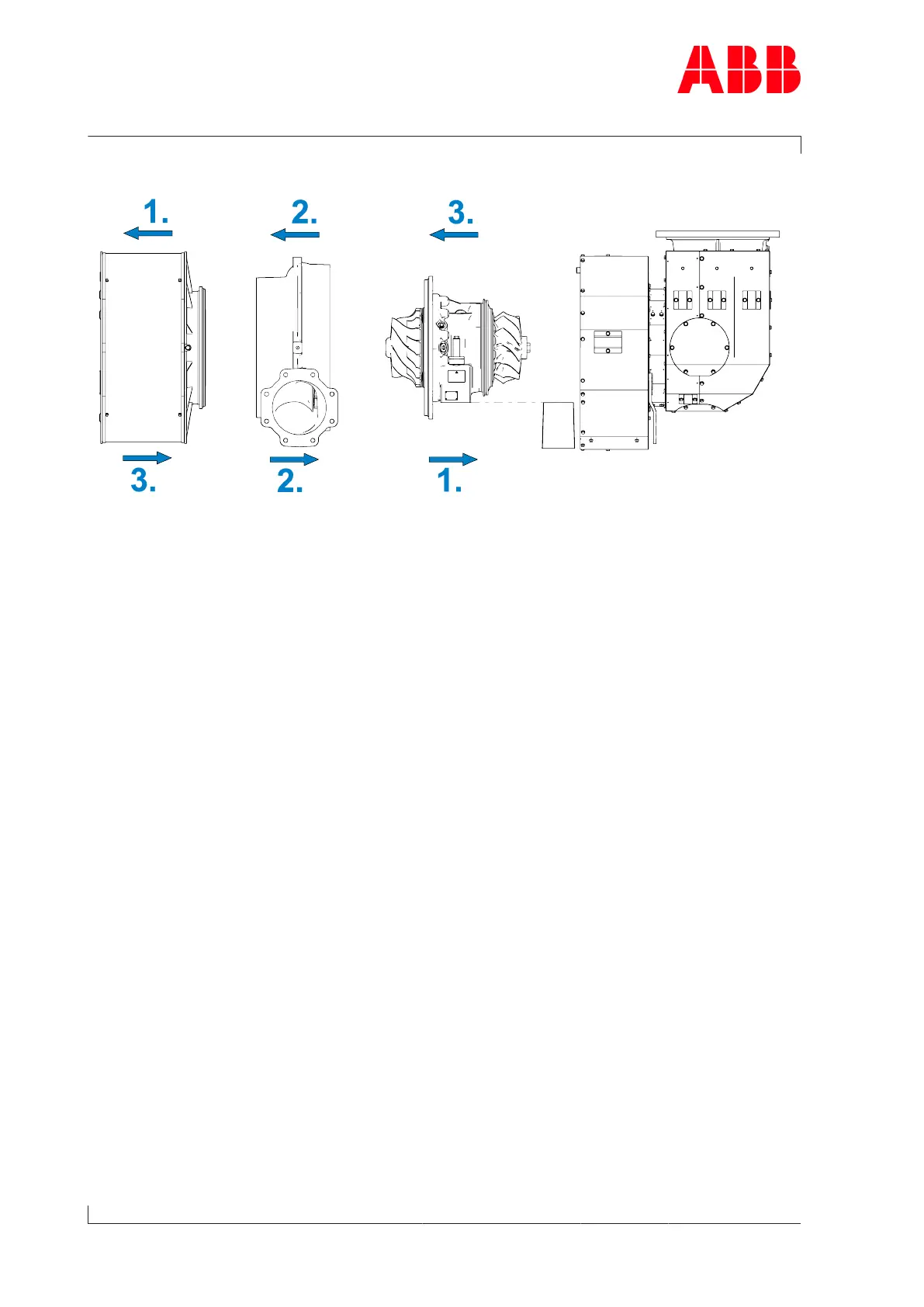

9 Dismantling and fitting, general / 9.2 Material required
© Copyright 2022 ABB. All rights reserved. HZTL4032_EN Rev.S February 2022
9.2 Material required
Customer spare part set
Before starting operations, make sure the required customer spare part set is available (see
chapter Spare parts →178).
Customer tool set
Before starting work, make sure the required tool set is available (see chapter Tools →192).
Not all tools are marked with a part number. Identification is guaranteed by the tool list. This
list is enclosed with the tool set.
WARNING
Servicing the tools
The tools must be checked for damage before and after use.
u Visually inspect for corrosion, cracks, deformation and wear.
u Damaged tools must no longer be used and must be replaced.
Swivel lifting eyes
Swivel lifting eyes are required for the safe lifting of loads, which are not supplied by Turbo
Systems.
Fig.39: Swivel lifting eye (example)
Product Thread M Length L Load limit Quantity
A150 M8
M16
≤13mm
≤21mm
≥75kg
≥1000kg
3
2
A155 M8
M16
≤13mm
≤21mm
≥150kg
≥1400kg
3
2
Table38: Swivel lifting eyes
Press-off screws
Six press-off screws(01) are required to press off the gas outlet flange, which are not sup-
plied by Turbo Systems.
Page 90 / 198
