Operation Manual / A150-M56/66/57/67 - A155-M..
18 Spare parts / 18.3 Spare part – Illustrations
© Copyright 2021 ABB. All rights reserved.
HZTL4032_EN
Rev.Q
January 2021

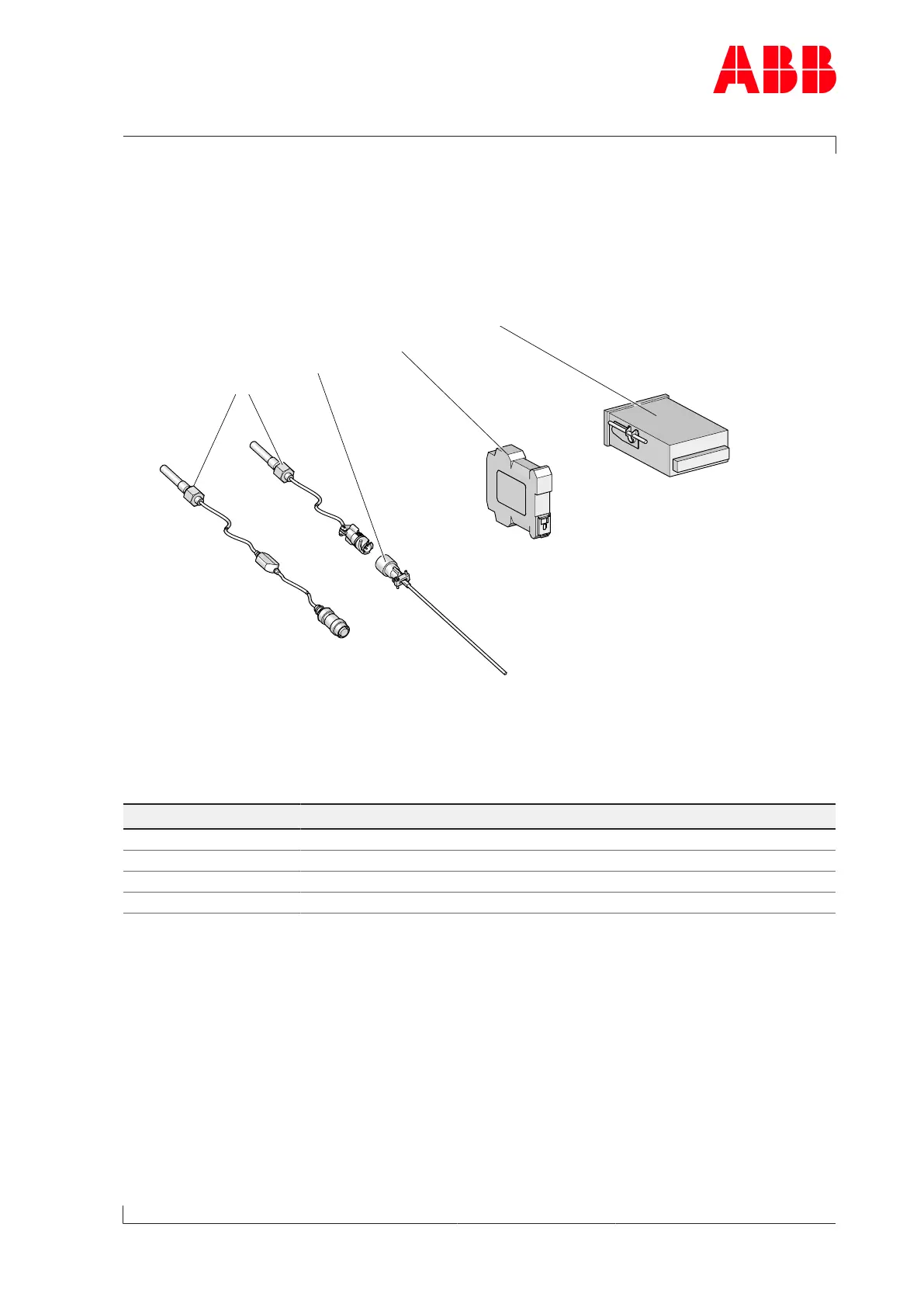

Speed measurement system
86258**
86526**
86505**
86515**
** = if provided
HZTL443475 Mod. A
Part no.
Designation
86258**
Tachometer
86505**
Speed sensor
86515**
Cable connector
86526**
F/I-Converter
Table90: Spare parts - Speed measurement system
