Nozzle ring compression PD
© Copyright 2022 ABB. All rights reserved. HZTL4032_EN Rev.S February 2022

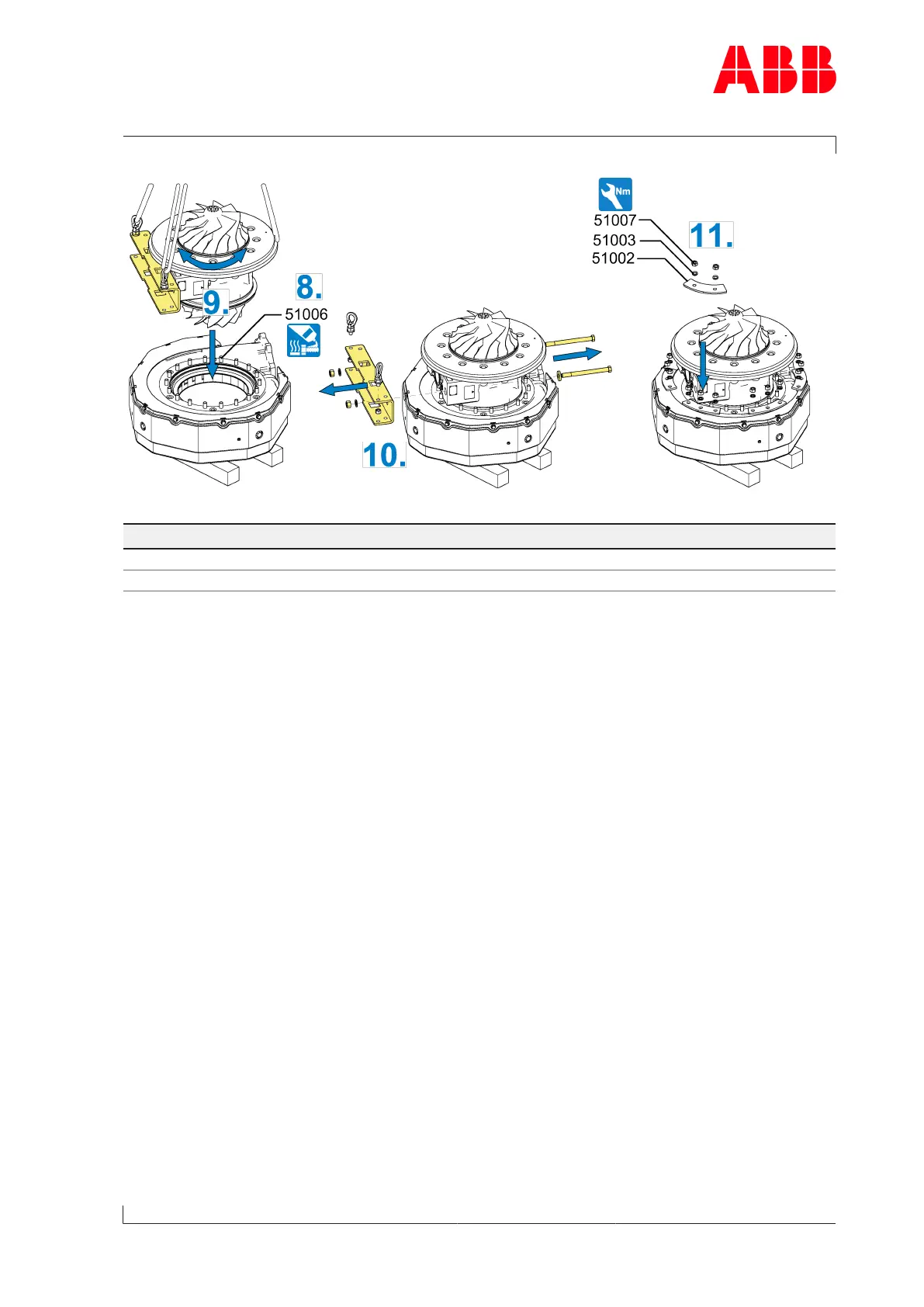

10.10 Nozzle ring compression PD
In order for the nozzle ring(56001) to be fixed during operation, it must be clamped
between the heat shield(42400) and the turbine casing(51000).
Fig.67: Nozzle ring compression PD
42001 Bearing casing 51000 Turbine casing
42400 Heat shield 56001 Nozzle ring
Product Nozzle ring compression PD [mm]
A150-M -0.17 ... 0.17
A155-M -0.17 ... 0.17
Table48: Nozzle ring compression PD
1. Measure dimensions A, B and S on cleaned surfaces.
2. Calculate compression(PD).
u If the calculated value(PD) lies outside the specified range, contact a Turbo Systems ser-
vice station.
