18 Spare parts / 18.3 Spare part – Illustrations
© Copyright 2021 ABB. All rights reserved. HZTL4032_EN Rev.Q January 2021

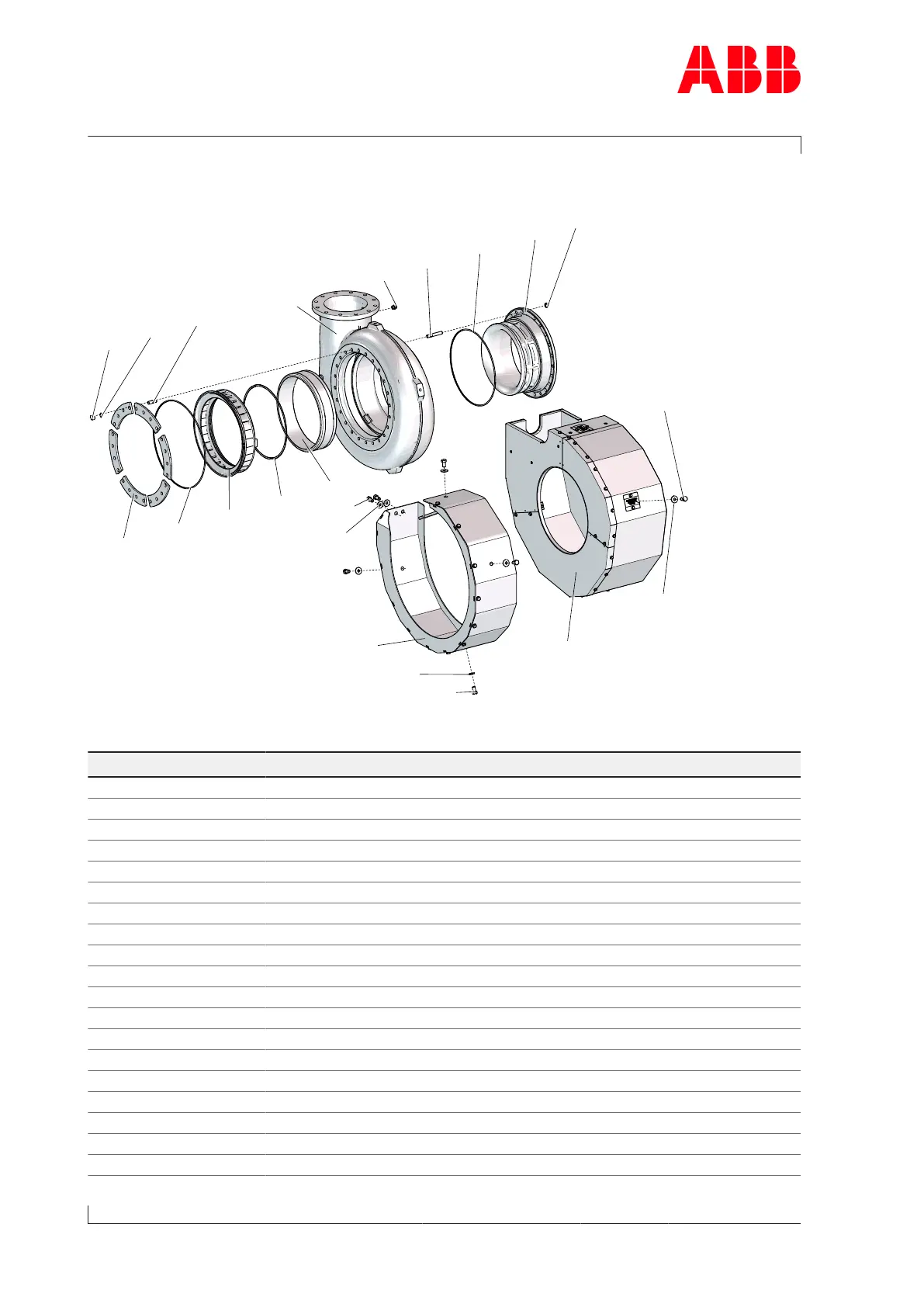

Turbine casing, 1 inlet
51009
57002
51027
51106** TW04
57003**
51008
51000
57210
56005
56001
51002
51105**
51006
51003
51007
51101
51102
51010**
TW03 / TW04
51500
51101
51102
51102** TW03
51107** TW04
51101** TW03
** = if provided HZTL443311 Mod. B
Part no. Designation
51000 Turbine casing
51002 Fastening strip
51003 Verbusripp washer
51006 Stud
51008 Stud
51009 Hexagon nut
51010(o) Insulation TW03 TW04
51027 Screw plug
51101 Hexagon-head screw
51102 Tension washer
51105(o) Metal C-ring
51106 Hexagon-head screw
51107(o) Tension washer
51500 Burst protection
56001 Nozzle ring
56005 Lamellar sealing ring
57002 Gas-outlet flange
57003(o) Metal C-ring
57210 Burst ring
Table81: Spare parts – Turbine casing, 1 inlet
Page 178 / 194
