ABB HT611036 - Removing the Cartridge Group; Fig. 61: Removing Cartridge Group 1; Table 46: Tightening Torque (90012-01)

Operation Manual / A150-M56/66/57/67 - A155-M..
10 Dismantling and fitting with removed air inlet and gas outlet / 10.6
Removing the cartridge group
© Copyright 2022 ABB. All rights reserved. HZTL4032_EN Rev.S February 2022
10.6 Removing the cartridge group
u Mark the casing position for assembly.

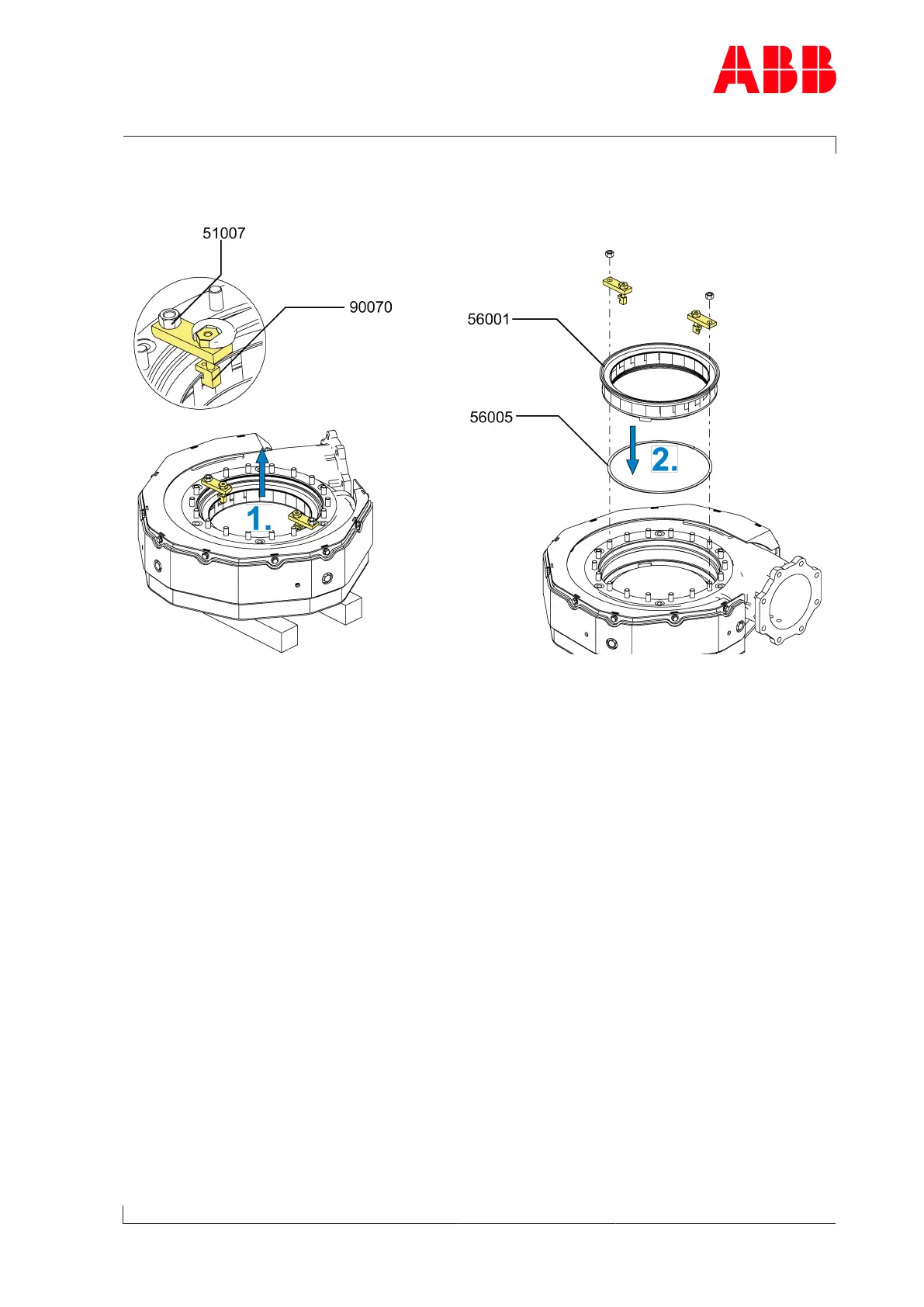

Fig.61: Removing cartridge group 1
Product Position Tightening torque [Nm]
A150 01 150
A155 01 150
Table46: Tightening torque (90012-01)
1. Treat threads of studs(51006) with penetrating oil and leave to take effect.
2. Loosen nuts(51007) and remove Verbus Ripp® washers(51003) together with the fasten-
ing strips(51002).
3. Fit the cross-piece of the service support(90012). Observe the tightening torque.
