Operation Manual / A150-M56/66/57/67 - A155-M..
18 Spare parts / 18.3 Spare part – Illustrations
© Copyright 2021 ABB. All rights reserved.
HZTL4032_EN
Rev.Q
January 2021

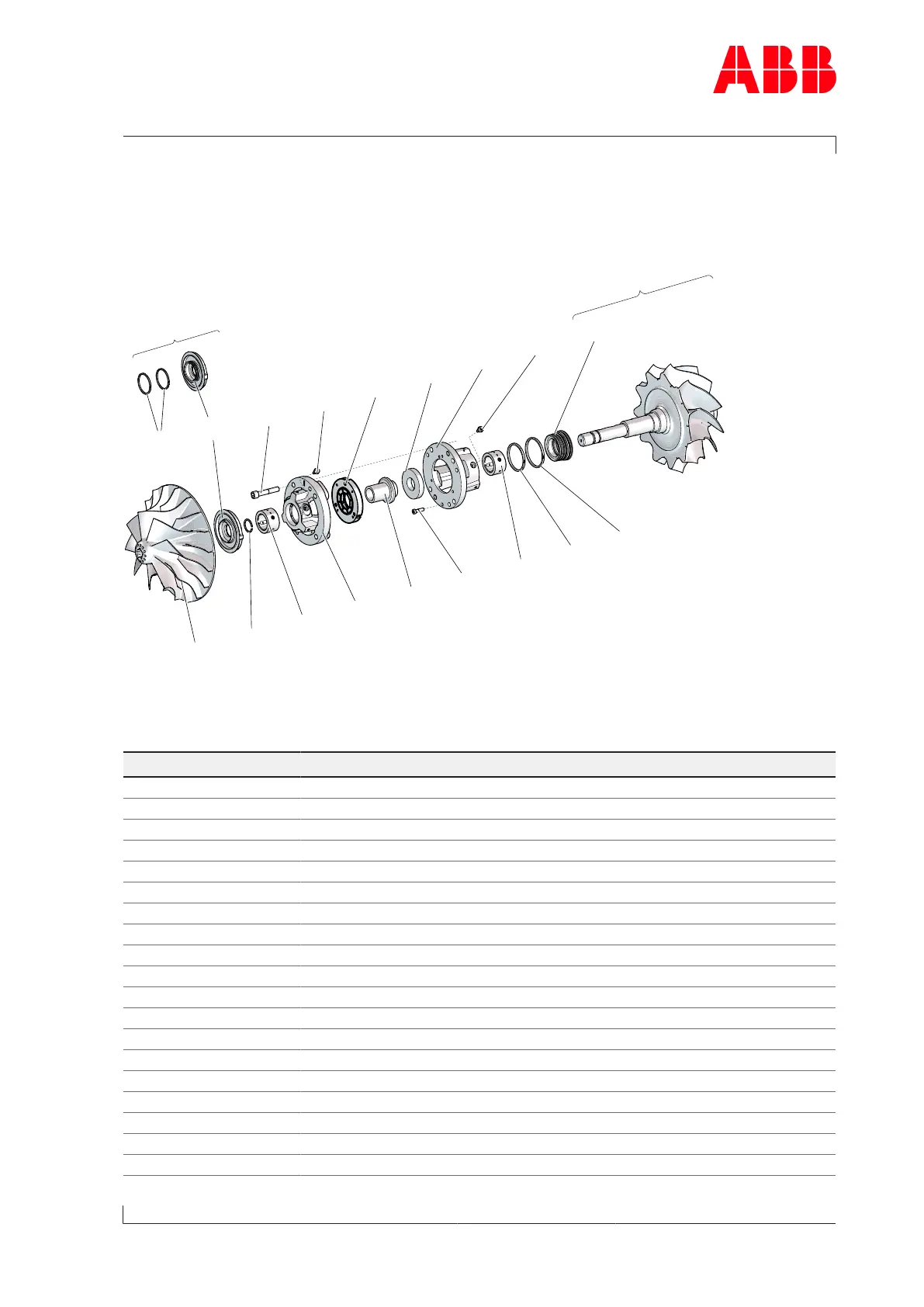

Rotor and bearing parts
21000
21011
21002*
21006*
32102*
32112
32159*
32103*
32114*
32111*
32104*
42002
32110
32167* **
32101*
32109
32113*
42302*
25000
* = Av
ailable within the spare part set
** = if provided
HZTL443470 Mod. A
A150-M58/68 only
Part no.
Designation
21000
Turbine
21002*
Piston ring
21006*
Piston ring
21011
Sealing bush for shaft
25000
Compressor wheel
32101*
Radial bearing
32102*
Radial bearing
32103*
Thrust ring
32104*
Thrust bearing
32109*
Sealing disc
32110
Bearing flange
32111*
Auxiliary bearing
32112
Bearing flange
32113*
Socket screw
32114*
Socket screw
32159*
Socket screw
32167* **
Snap ring
42002
Socket screw
42302*
Piston ring
Table80: Spare parts - Rotor and bearing parts
