Turning procedure
Fitting the lifting and turning tool

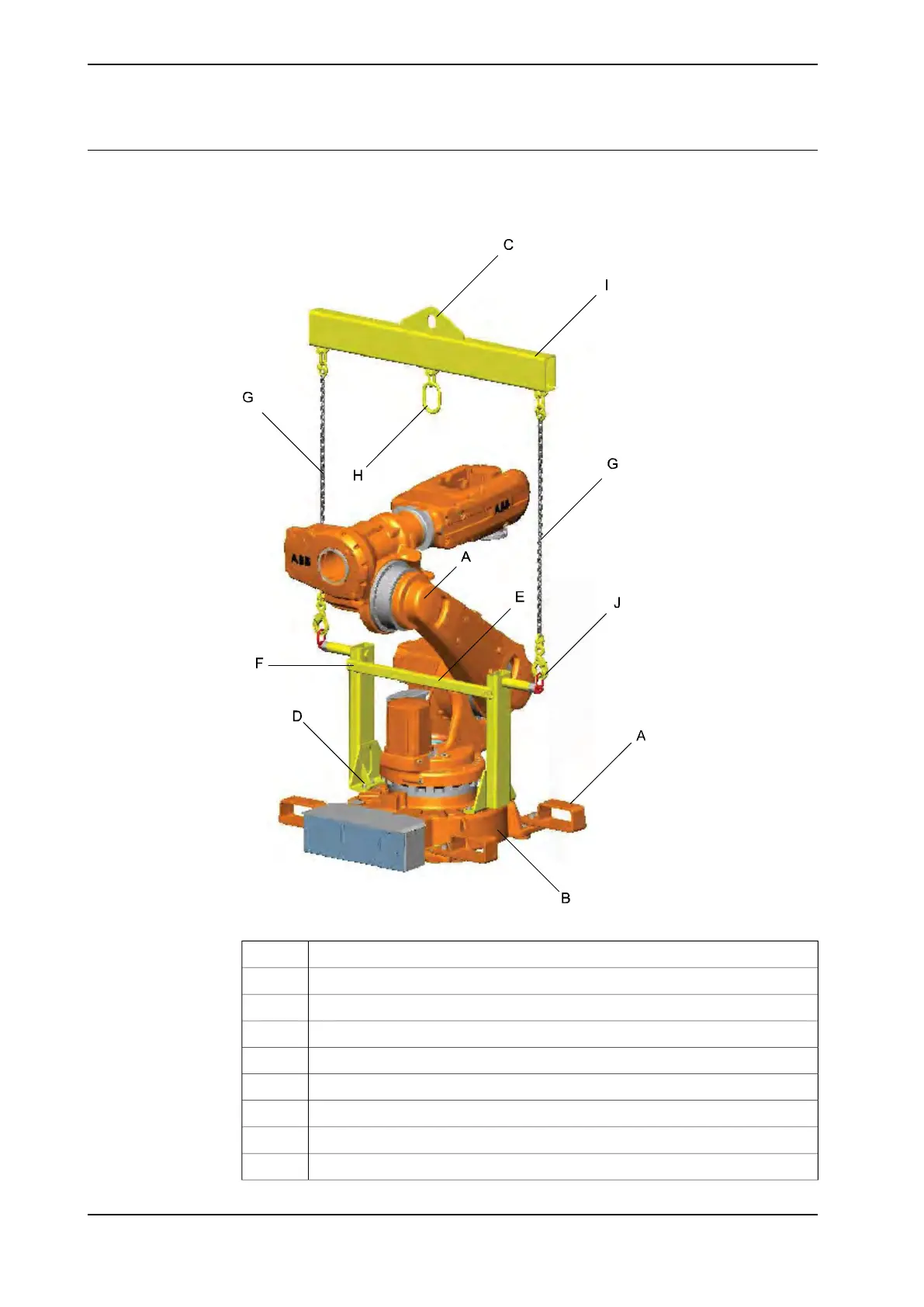

The figure shows the lifting and turning tool fitted to the robot.
xx0900000327
Lifting accessories for forksA
Robot baseB
Lifting eye upper beamC
Attachment bolts in robot baseD
Distribution beamE
Attachment bolts for distribution beamF
Lifting chainsG
Chain block lifting eyeH
Upper beamI
Continues on next page
74 Product manual - IRB 6620
3HAC027151-001 Revision: T
© Copyright 2006-2018 ABB. All rights reserved.
2 Installation and commissioning
2.5.2 Lifting the robot with lifting and turning tool
Continued
